Brittany Warly project update

My original idea was to make a fiber optic chandelier, but it turns out that my design is starting to look more like a jellyfish, so I have decided to turn it into a fiber optic jellyfish. I have finished assembling all of the main components of the project. I went in and saw Tim May, who helped me a ton on this project. I was able to get the circuitry all working with the Arduino and I got some extension cables so that I could have the LED’s hang below the base.

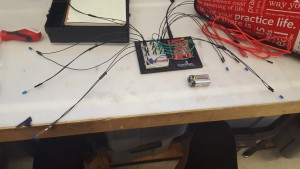

Pictured below is my arduino board set up with the extension wires and blue-colored LED’s. I also bought a power cable from Tim so that I could simply attach a 9V battery to the power supply to run the LED’s.

20160309_155004

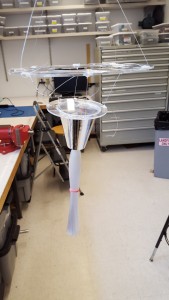

Shown below is the main mounting set-up. I used a laser cuter to cut the top base and then hung the fiberoptic below it with fishing line. I then drilled some small holes into the acrylic circle scrap material from the laser cuter and glued it onto the base of the fiberoptic.  I rubber-banded the fiberoptic cable to make it easier to work on the base.

20160309_115752

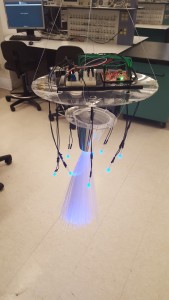

Below you can see the functioning fiberoptic jellyfish with the arduino running and the fiberoptic turned on as well.

20160311_153923(0)

Here is where I am up to date. A fully functioning fiberoptic jellyfish. Tim May helped me create a switch to turn the LED’s on and off, and overall I like how it turned out. I have learned a lot in this project from Arduino to the laser cuter and how to solder and connect everything. All I would like to add is a dome-shaped cover for the electrical components, to make it look more like a jellyfish, however, I would like it to be transparent so that the electrical components can be seen through it, which gives it an electrical/engineering aspect that I like. I am also thinking of adding in more LED’s into the actual arduino board so that they can light up while under the dome!
