Speaker Enclosure: 5 Design / Build Constraints



Constraint 1: Cost of remaining materials

Because I already have most of the materials from last year when I started thinking about doing this project, I don’t have a ton left to purchase. The three main things that I need are: power connectors ($14), bluetooth amplifier ($35) and wood (the cost is going to vary with the size of this project). Unfortunately, wood costs can balloon pretty quickly with a larger project. As a result I may try and design a somewhat unusually shaped enclosure that would save me material. I’m thinking that the enclosure could be trapezoidal.

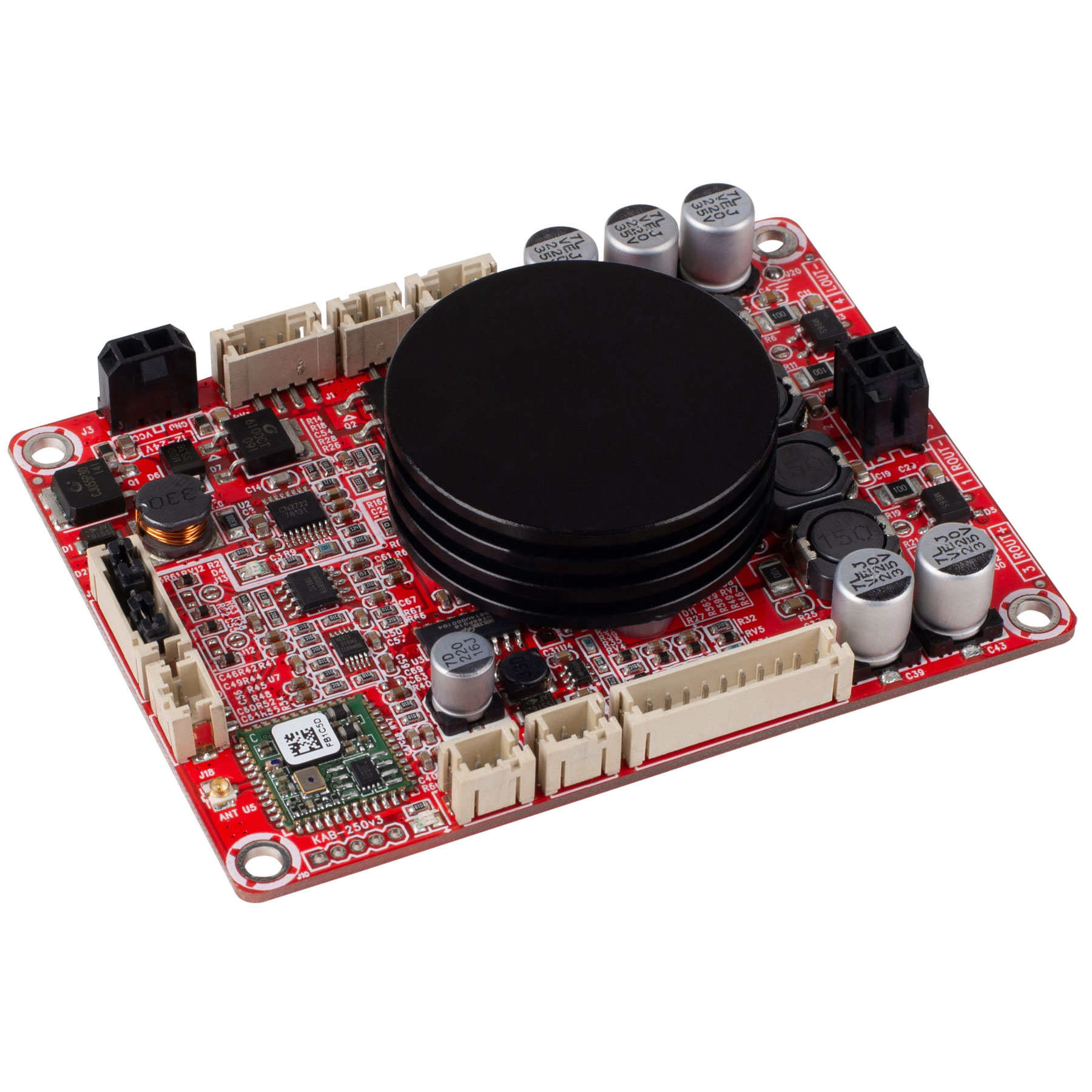

Bluetooth amplifier board, image credit [1]

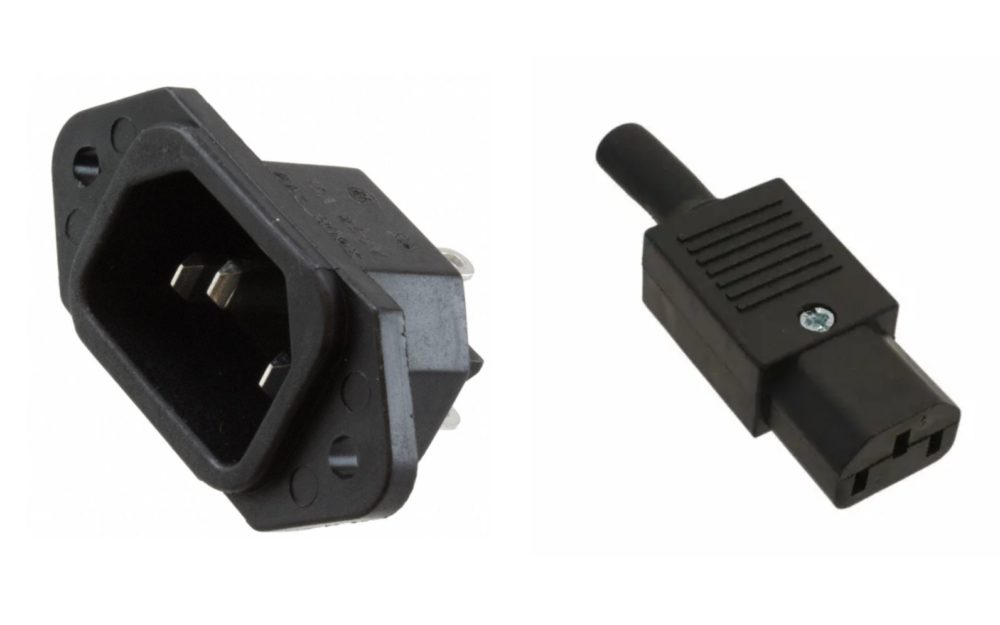

The AC connectors that I’m thinking about are shown in the image below, these will give a really clean look for the project, because it won’t have a cord dangling off the back.

Inexpensive AC adapter option, image credit [2]



Constraint 2: The woodworking aesthetic

Working with this aesthetic will certainly constrain my construction process and my material choice. I am going to be limited to things like table saws and routers. While the laser cutter is wonderfully simple and fast, the burnt edges that it produces really conflicts with the aesthetic that I am trying to go for. Also because I am going to try and do a natural wood look, I am going to need to choose decent materials, which can drive up the cost as well as make things harder to find. I was originally thinking about doing a patterned walnut and cherry face of the box, but that would have been fairly expensive as compared to pine. Therefore, I am just going to stick with pine or one of the other less expensive woods and either leave it natural or use a stain if I want a darker look.

Constraint 3: Time availability at the end of the semester

Currently I am building a robot in 2 of my classes, and those projects are going to get even more demanding as the semester wears on. I am also in a business class for the CU MBA program which is quite demanding. As it gets later in the year, the strain on my schedule will get even worse. Therefore I want to try and not bite off more than I can chew. My goal is to get started as soon as possible so that I can front load things and to make this project more realistic so that I don’t completely screw up my schedule.

Constraint 4: Size  of the enclosure & fitting the maze

One constraint is the size of the project. I am living in a fairly small apartment and will be moving to one of similar size or smaller in August. Therefore the issue of size comes into play. On top of that, the larger the enclosure is, the more wood I have to buy, so keeping it to a manageable size is really important. On the other hand, the enclosure needs to be large enough to hold the speakers that I am planning on using and to contain the maze for at least one of the speakers for a bass boost. One more problem is that the larger I make this thing, the more difficult it will be to store in the shop or to transport around.

Constraint 5: Availability of shop space

Another issue related to timing is the fact that all fabrication spaces get progressively busier at the end of the semester. This means that if I leave myself only the last couple of weeks to work on the project, I am going to have to compete for space. And given that I have a very busy schedule, I may have a hard time finding periods of emptiness in the shops around campus. I am planning on using the wood-shop in the idea forge, so hopefully that doesn’t get too crowded.

Credits/ References:

[1] Digikey 1, Digikey 2

[2] Parts Express
