I have further researched a swan neck wing design. I plan on using an E-423 air foil using a 40cm chord length. This is because of the reynolds number I have calculated to be rather high in the 1 million range. At this range an angle of attack from -5 to 15 degrees is optimal. Anything past 12 degrees creates more drag which is essentially stalling the car. The optimal angle for Cl/Cd v Alpha is 5 degrees in a theoretical 2D simulation.

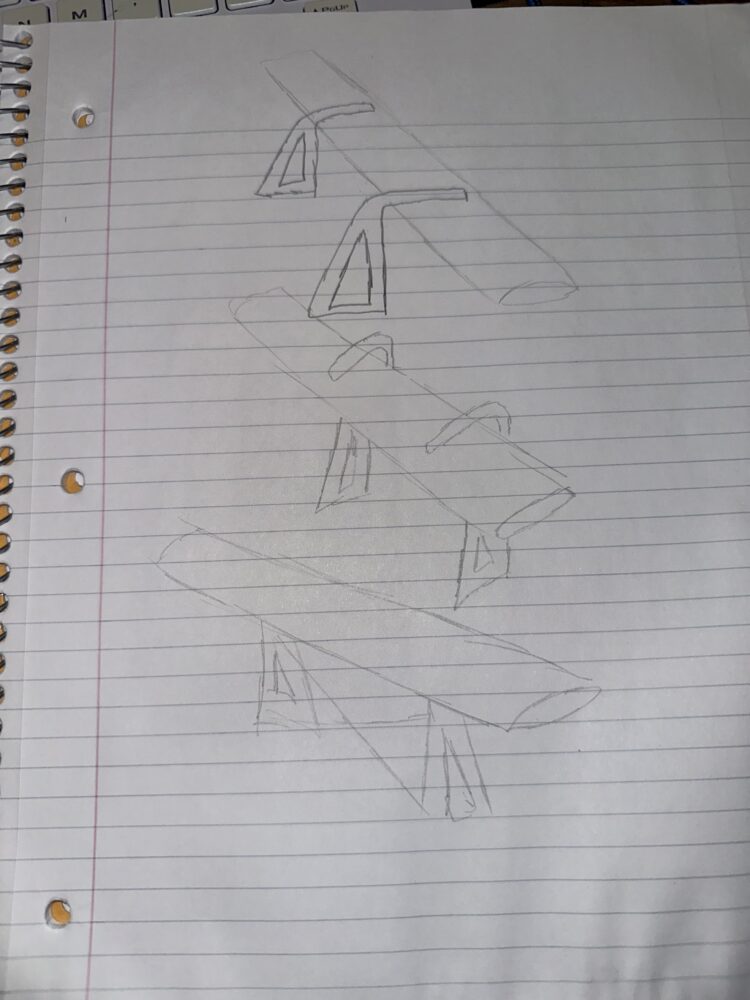

Here are some rudementary sketches that I have created.
ALTERNATIVES

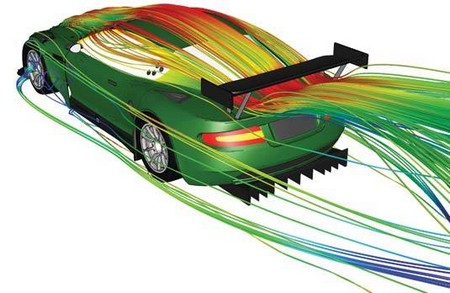

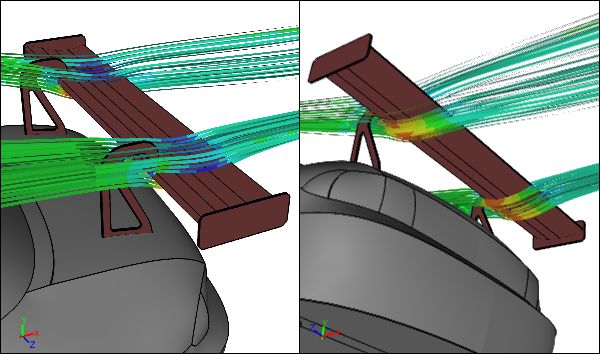

Some alternatives I have thought about are to make the wing bottom mounted instead of a swan neck. I feel that I would not want to pursue that route because having supports under the airfoil will disrupt the airflow underneath the wing especially around turns. The whole purpose of the swan neck wing is to perform better than a traditional wing around a track.

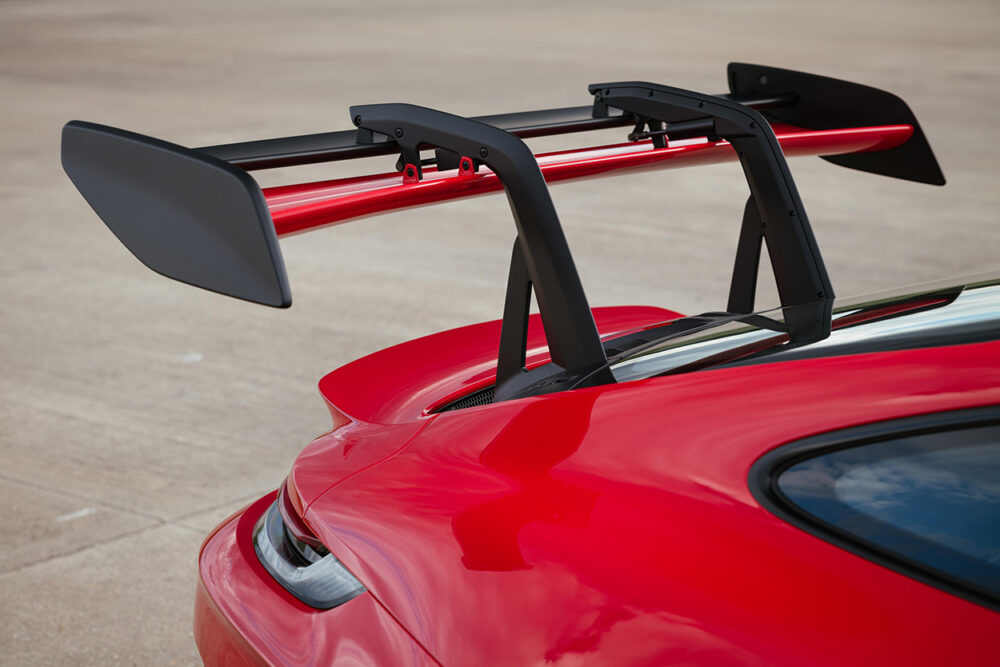

This design will closely respemble the GT3RS wing however it will not include the active aero for braking.
I will continue to create models for this to be ready for a 3D simulation. For the CFD the program I would like to use is Ansys. I have some experience with Ansys and would like to sharpen these tools along the process.
REFRENCES
Katz, Joseph (8 March 1996). Race Car Aerodynamics. Bentley Robert. p. 99. ISBN 0837601428.
Katz, Joseph (8 March 1996). Race Car Aerodynamics. Bentley Robert. pp. 208–209. ISBN 0837601428.
“Why a Spoiler for Your Car?: Fuel Economy, Styling, Value Enhancement”. cardata.com. Archived from the original on 2011-10-30. Retrieved 2011-09-28.
Happian-Smith, Julian (2000). Introduction to Modern Vehicle Design. Elsevier. p. 116. ISBN 9780080523040. Retrieved 19 March 2016.
“#MISSION8 – BMW M8 GTE Technical Specifications”. bmw-motorsport.com. 12 September 2017. Retrieved 21 February 2022.
Perkins, Chris (10 December 2019). “Gordon Murray’s McLaren F1 Successor Uses a Fan for Downforce and Drag Reduction”. Road & Track. Retrieved 26 December 2019.
“Jayski’s Silly Season Site – Past News Page”. Jayski.com. 2005. Archived from the original on 2010-10-17. Retrieved 2013-08-03.
Dempsey, Wayne R. (2001). 101 Projects for Your Porsche 911. MotorBooks/MBI. p. 198. ISBN 0-7603-0853-5.[permanent dead link]
