Thundercloud Final Report Part 1

Introduction

I created a thundercloud light fixture. It contains many LEDs that flash randomly like lightning. It is made to hang from a ceiling. I was inspired to create a light fixture that mimicked something in nature.

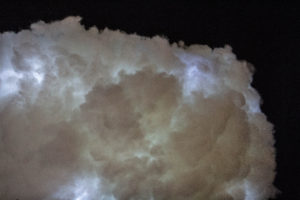

cloud-2



Materials

  • Polyfiber pillow stuffing
  • LEDs
  • 100′ 22 AWG White Wire
  • Arduino UNO
  • Mux Shield II
  • Small breadboard
  • White Poster Board
  •  Spray Adhesive
  • 9V Battery

The cloud itself is made of polyfiber pillow stuffing. LEDs were wired throughout the pillow stuffing to resemble bolts of lightning. The LEDs are attached to an Arduino UNO with a Mux Sheild II add on. The Mux Sheild II allows for 48 output pins. This allowed for a greater number of LEDs/lightning bolts in the cloud. The entire cloud is built around a cardboard poster board. The board hold all the hardware needed to run the lights, the arduino and breadboard. The arduino is run off a 9V battery. The polyfiber is attached to the board using spray adhesive. Clear hanging wire is also attached to the board and runs out the top of the cloud, so you can hang it from the ceiling. The wire is arranged so that it should be hung from a hook.

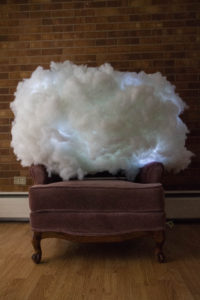

cloud-3

Building

I built the cloud in layers. The first layer was the poster board. I attached a thin layer of pillow stuffing with spray adhesive. Then I added a layer of lightning bolts. The wires of the lightning bolts were threaded through a hole in the middle to the other side of the poster board where the hardware would be held. I did another layer of pillow stuffing, then another layer of lightning bolts and then another layer of pillow stuffing. I also put some pillow stuffing on the back to cover all of the poster board. All this is held together by spray adhesive and some string. All the wire is threaded through the hole and attached to the hardware on the other side.

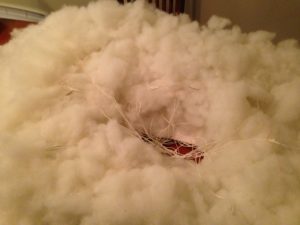

This picture is of the front of the cloud during assembly, after the first layer was put on. You can see the lightning bolts resting on the first layer of the cloud.

IMG_2206

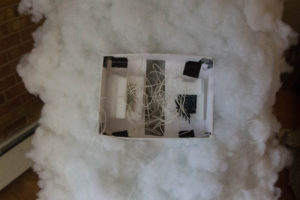

This picture is of the back of the cloud after all the assembly was complete. The left side is the bread board. The right side is the arduino and battery.

cloud-4

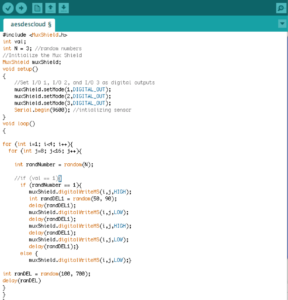

Code

code





Cost

  • Polyfiber – $18
  • 100 Pack LEDs – $30
  • 100′ 22 AWG Wire – $10
  • Spray Adhesive – $14
  • Poster Board – $14
  • Hanging Wire – $7
  • Total – $93
