Final Project (Pt1): Floating Faucet

My project idea is a floating faucet fountain, where the water is leaving the faucet with nothing entering it. I have seen photos of similar design ideas but in a larger scale, which drove me to build a small floating faucet fountain that would add to the decoration of my apartment. I started to look up different procedures for building this design, and I was surprised by the simplicity of constructing it. Nonetheless, in most of the design that I saw, the base was not related to the aesthetic of the floating faucet which makes it less pleasing. Thus, I decided to choose my base (container) wisely to make it as aesthetically pleasing as possible.

Goals

The following are the main two goals that I had to achieve the desired design:

  • Illusionism aesthetic: the first and most important goal was to make the fountain look unreal and eye catching.
  • A base that matches with the design: as I mentioned above, I want to choose a base for the fountain that looks more pleasing than other projects I saw online

Initial Sketches

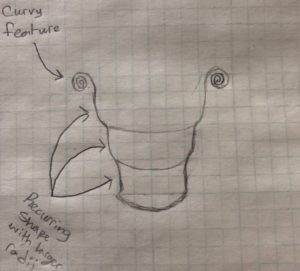

The only thing that I started to sketch at the beginning is the base design. At first, I thought of using an art deco bucket as shown below. However, I thought that a bucket might not be the greatest idea to use.

Ideas

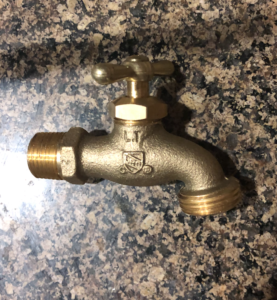

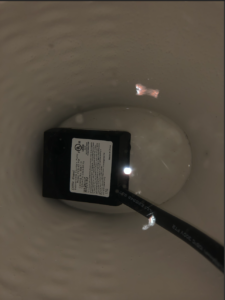

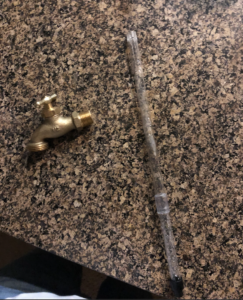

The basic idea of the project is to fit an acrylic tube in the faucet end, and drill holes at about 1/2 inch from the top. The water is then pumped through the acrylic tube using a small fountain pump. The water then leave from the holes, which will consequently cover the tube and make it look like it’s coming out of the faucet. I went to McGuckins to buy the materials I needed for the project, and I was able to get a garden faucet and a fountain pump. However, I struggled to find an acrylic tube of the size of the faucet. Thus, I started to look for acrylic tubes online, and I was lucky when I found an acrylic tube that is made for faucet fountains with the holes drilled on. I then decided to use a fish-shaped vase that I had for two years since I thought that the fish-shape could add a lot to my aesthetic.

Materials, Cost, and Budget

For this project, I was aiming for a budget of less than $100. While I was looking for small floating faucet fountains, I found out that some of them are sold for around $200. The materials along with the cost are listed below (shipping costs included):

  • Submersible pump (~$16):
  • Acrylic tube (~$18)
  • Faucet (~$6)
  • Fish-shaped vase (free)
  • Total: $40

Procedure

For this project, I didn’t need to do any manufacturing, however, I had to file the faucet a little bet to fit the acrylic tube perfectly. I initially wanted to drill holes through the base to feed the pump’s wire through, but it was a big challenge to drill a large hole through a ceramic vase, and I decided not to risk it.

Presentation
