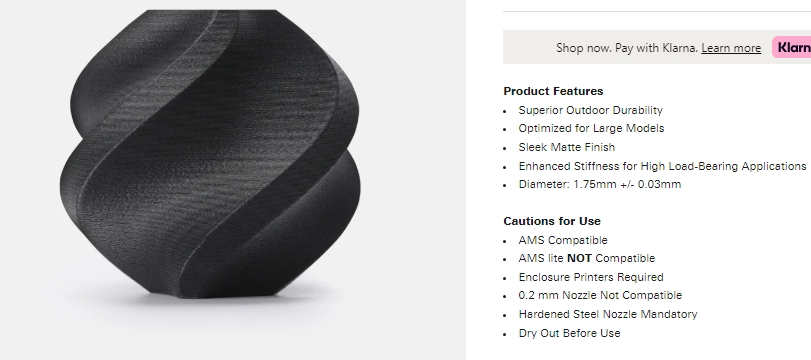

For the fender mirror, I was able to find and source a material for the body to house the recycled components that would be best suited for its strength and outdoor application. ABS plastic is one of the most common plastics used today for its positive engineering characteristics, however it is not very UV stable. A common alternative to ABS is ASA, which maintains many of the same material properties of ABS with increased UV resistance. I will be using a fiber infused ASA filament from Bambu Labs.
I have been able to source two identical power mirror motors now and I am still looking for a matching set of lenses! The difficulty has been finding a round lens that isn’t either completely flat or sharply convex, A lightly convex mirror would be most optimal to maximize visibility without excessive distortion. My sketches for the mirror have not progressed far beyond my CAD model in the previous post, but I am currently at the Chicago Auto Show and have gotten lots of inspiration for my next step.
