Upcycle Project: Ethernet Key Holder Rack
For my upcycle project, the Ethernet key holder rack, I have started gathering the necessary materials to fully carry out my design. Below is a conceptual sketch of two key components that work together for this project: the router itself and the keychains, which will plug into the router system and hang off a door.

Sketch 1: The router hanging door system

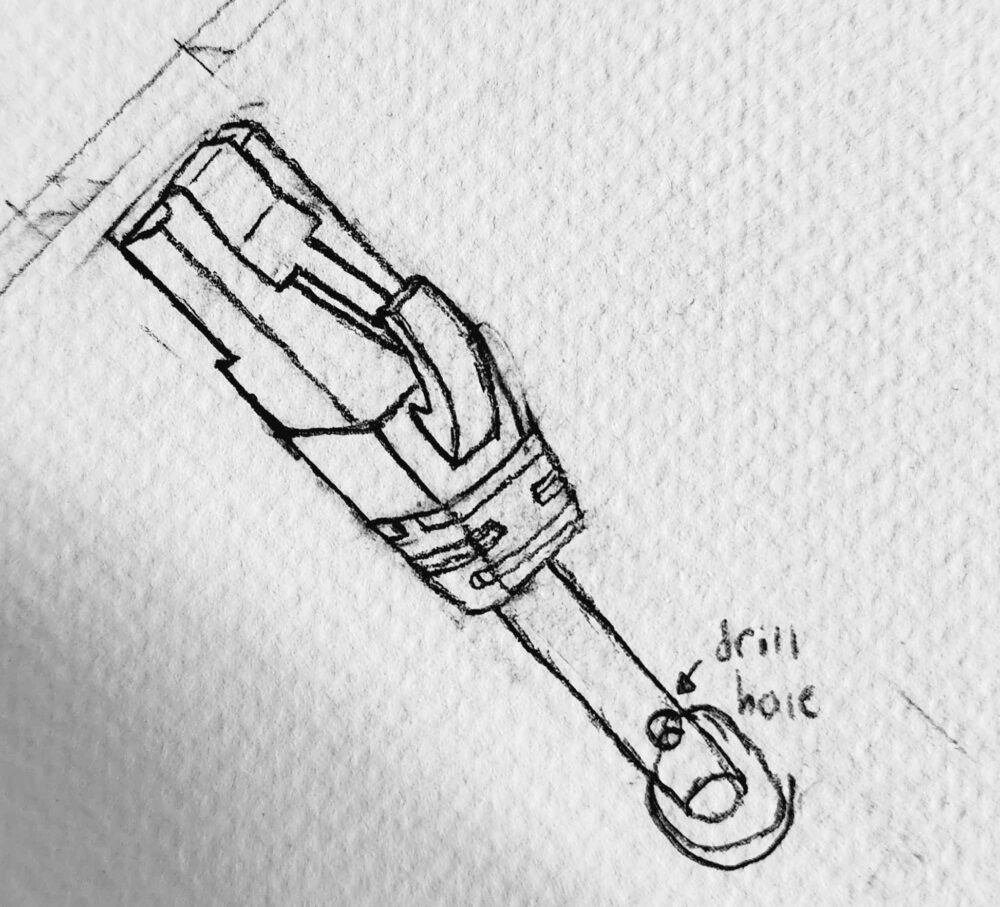

Sketch 2: The keychains.

Materials Gathered So Far
The primary material I’ve acquired is a Cisco Meraki MX64, a Small Branch Security Appliance. While I don’t know much about its original functionality, this project doesn’t require me to understand how it works or even power it on (which is a relief, as connecting a thrifted device to my Wi-Fi feels a bit risky). For this project, the device will act as a router-like structure with its four Ethernet ports serving as slots where the keychains will connect and hang.
The USB port on the device will likely be covered with tape and painted over to match the aesthetic I’m aiming for. Exposed ports would disrupt the clean, simple design I envision, so concealing them is essential.

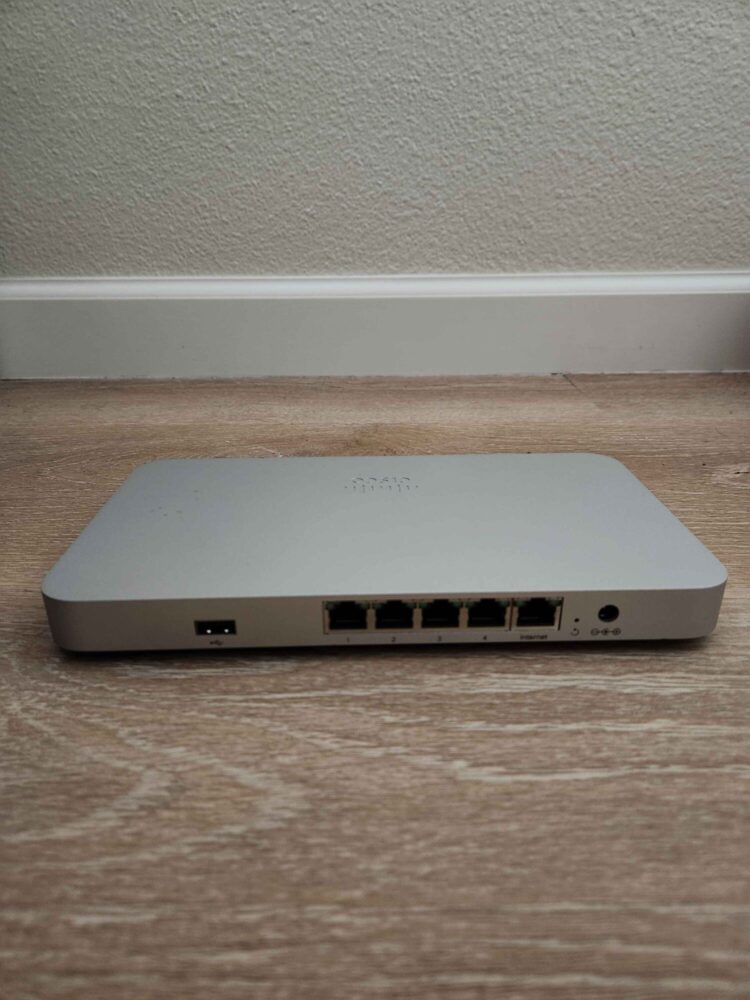

Image 1 & 2: Cisco Meraki MX64

Modifications to the Router

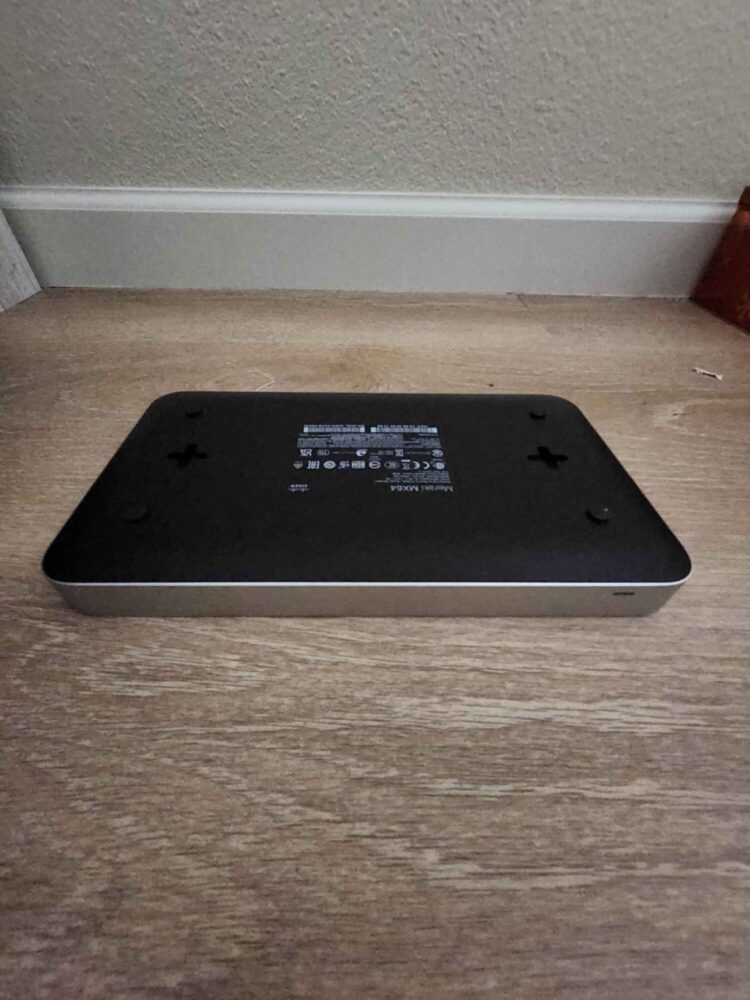

On the back of the device, there are four rubber feet. Removing these feet reveals four hex screws, which I can use to attach the router to a sheet metal backing. Once I obtain a sheet of metal of adequate length, I plan to punch holes in it that correspond to the hex screws. This will allow me to secure the router to the metal without creating additional mess or needing to order new screws. Alternatively, I could use the existing cutouts on the router to hang it directly on the door, but this might make the setup less secure and cause it to protrude too far. To avoid complications, I’ll ensure the screws attaching the sheet metal are flush with the device.
Keychain Design

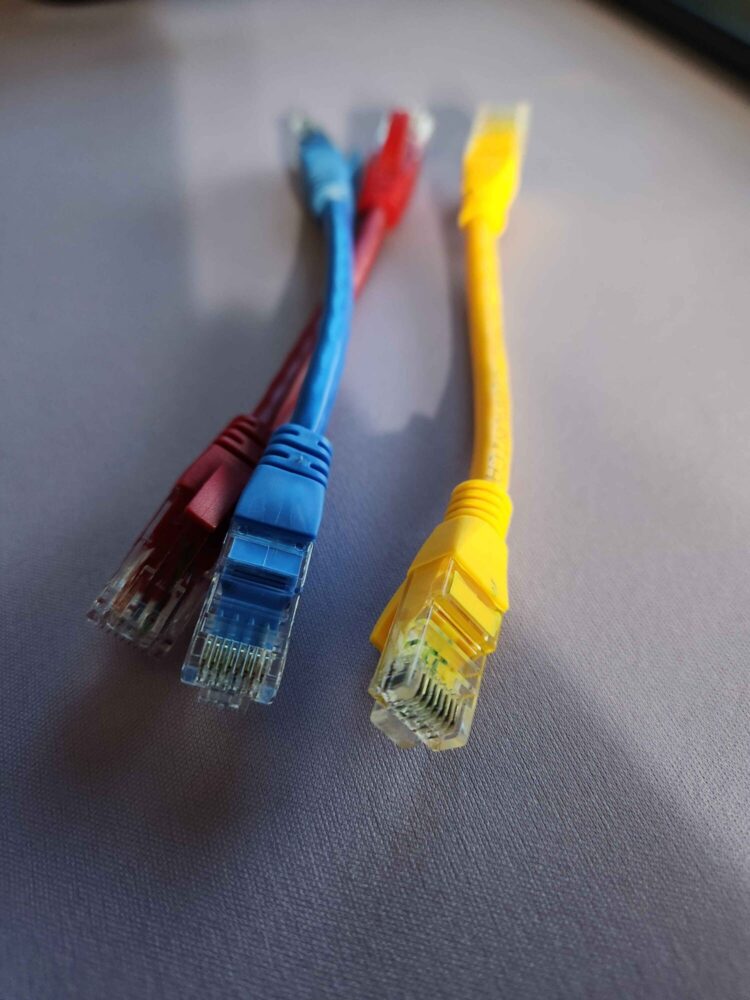

Image 3: Multicolor Ethernet Cable

For the keychains, I’ve found spare Ethernet cables in my research lab that match the color scheme of the vintage rainbow Apple logo I mentioned in a previous post. The colors I currently have are red, cyan, yellow, and gray. While gray isn’t part of the original Apple logo, it complements the vintage aesthetic of older technology, such as the neutral gray plastic used in vintage computer mice.

To create the keychains, I plan to cut the Ethernet cables in half and drill a hole near the cut end. Afterward, I’ll clean up the exposed wires and secure them with super glue to keep everything intact. Once the hole is made, I’ll attach rings to the cables, transforming them into functional keychains.

Remaining Materials and Next Steps
I’m still in the process of gathering materials, such as paint and sheet metal. My search for sheet metal has been challenging so far, but I’ve identified a few potential sources where I might find what I need. Hopefully, everything comes together as planned! Ok, Thoughts, Questions, Concerns on how this is coming along.

All Images and drawings were done and taken by me
