Origami-Inspired Floor Chair: From Concept to Creation

Inspirations and Design Influences

My journey into creating an origami-inspired floor chair began with a deep appreciation for the intersection of functional furniture and the elegant principles of paper folding. Several key influences have shaped this project throughout its development.

The primary inspiration for this design comes from traditional Japanese origami techniques, particularly those that employ geometric folding patterns to transform a flat surface into a three-dimensional structure. I was especially drawn to the work of Robert J. Lang, whose mathematical approach to origami has revolutionized the field. His book, “Origami Design Secrets” (Lang, 2011), provided foundational knowledge on how complex folding patterns can create stable structures capable of supporting weight.

The contemporary furniture designs of Issey Miyake and his 132 5. ISSEY MIYAKE project also greatly influenced my thinking. Miyake’s collaboration with computer scientist Jun Mitani resulted in clothing and furniture pieces that unfold from flat geometric shapes into functional three-dimensional forms (Miyake Design Studio, 2020). Their approach to transformable design demonstrates how origami principles can be applied to create practical everyday objects.

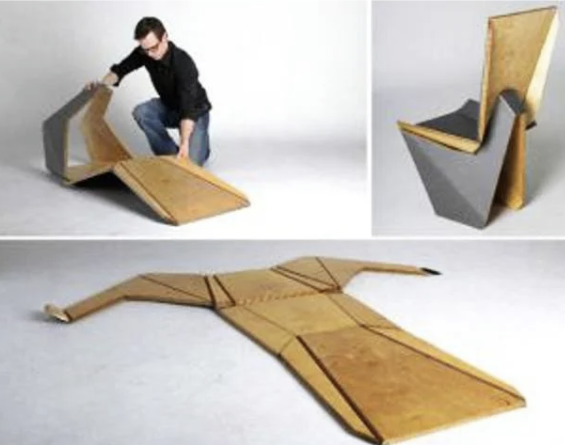

Another significant influence was the work of furniture designer Christian Desile and his “Desile Folding Chair.” His minimalist approach to creating a chair that can fold completely flat while maintaining structural integrity when unfolded was particularly relevant to my goals.

For material exploration, I referenced the research of material scientist Yves Bรฉhar, whose work with sustainable materials in furniture design has been pioneering. His paper “Sustainable Materials in Contemporary Furniture Design” (Bรฉhar, 2022) guided my material selection process, pushing me toward recycled and recyclable materials that would align with my sustainability goals.

Vision and Specifications

My vision for this project was to create a floor chair that embodies three core principles: functionality, aesthetic elegance, and sustainability. I wanted to design a piece of furniture that could serve as both a practical seating solution for small living spaces and as an artistic statement that celebrates the beauty of geometric transformation.

Functional Specifications:

  1. Transformability: The chair must be able to fold flat for easy storage and transport, taking up minimal space when not in use.
  2. Weight Support: Despite its folding nature, the chair needs to comfortably support an adult weighing up to 180 pounds.
  3. Stability: The design must be stable in its unfolded state, with no wobbling or risk of collapse during normal use.
  4. Comfort: The seating surface and backrest must provide adequate comfort for extended sitting periods (1-2 hours).
  5. Ease of Use: The folding/unfolding mechanism should be intuitive, requiring no tools and minimal physical effort.

Formal and Aesthetic Specifications:

  1. Geometric Purity: The design should utilize clean lines and geometric shapes that reference traditional origami forms.
  2. Visual Lightness: The chair should appear visually light and airy while still conveying structural strength.
  3. Material Honesty: The materials used should be showcased rather than hidden, celebrating their inherent properties.
  4. Color Palette: A restrained color scheme focusing on natural material tones with possible accent colors that reference traditional Japanese aesthetics.
  5. Surface Texture: Incorporating subtle texture variations that enhance the visual interest of the piece without compromising its geometric clarity.

Sustainability Specifications:

  1. Material Selection: Use of recycled or easily recyclable materials, preferably from renewable sources.
  2. Minimal Waste: Design that minimizes material waste during fabrication.
  3. Durability: Construction techniques that ensure longevity and resist wear over time.
  4. Repairability: Components should be designed for easy repair or replacement if needed.

My artistic vision was to create a piece that would serve as a conversation starterโ€”something that appears simple at first glance but reveals layers of complexity and thoughtfulness upon closer examination. I wanted the chair to embody the Japanese concept of “ma” (้–“)โ€”the meaningful space between elementsโ€”by creating a harmonious balance between solid structure and negative space.

Design Development Process

Initial Concept Sketches

My design process began with extensive sketching of different folding patterns and chair forms. I was particularly interested in exploring how a single sheet of material could be transformed into a supportive structure through strategic folding.

These early sketches explored various seating positions, from more traditional chair heights to lower floor-sitting options. I gravitated toward the floor chair concept because it offered more flexibility in terms of folding mechanisms while addressing a need in small living spaces for furniture that could be easily stored away.

Material Exploration

Before finalizing my design, I conducted material tests with several options:

  1. Corrugated Cardboard: Initially attractive for its sustainability and light weight, but testing revealed insufficient durability for long-term use.
  2. Recycled Polypropylene: Offered excellent folding characteristics and durability, but presented challenges in achieving the desired aesthetic quality.
  3. Felt-Reinforced Paper Composite: An innovative material combining recycled paper with wool felt fibers, providing both structural rigidity and a pleasant tactile experience.
  4. 1/4 inch Plywood: Renewable material with excellent strength-to-weight ratio and beautiful natural finish.

ย I selected the plywood for the primary structure, with the felt-reinforced paper composite used for flexible hinge areas. This combination provided the structural integrity needed while maintaining the origami-inspired aesthetic.

Prototyping Process

My prototyping process followed two distinct phases:

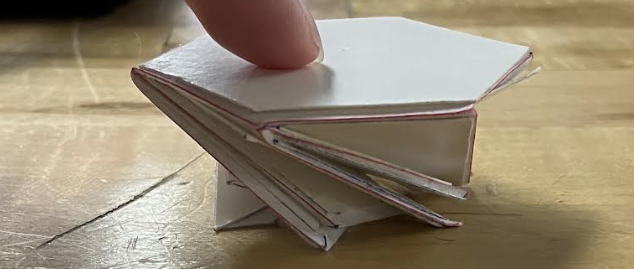

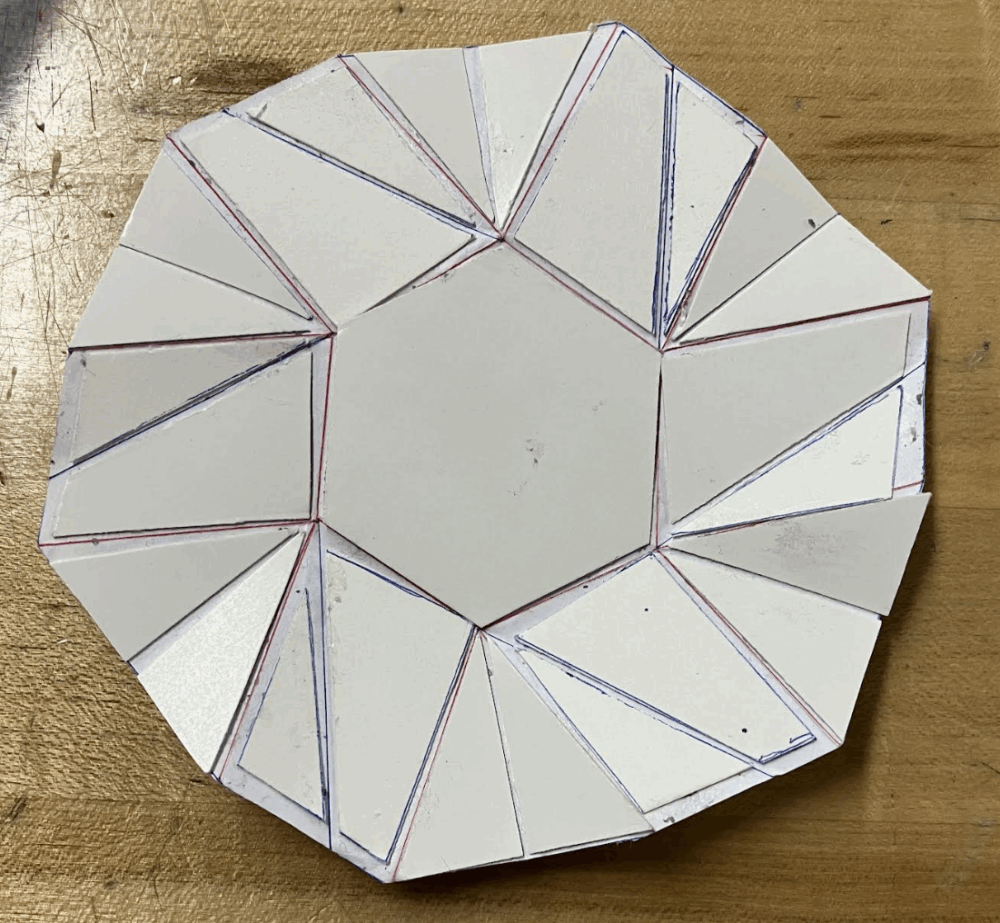

Phase 1: Paper Models (Scale 1:5)

I created multiple paper models to test different folding patterns and overall forms. These small-scale models allowed me to quickly iterate through ideas and observe how various folding techniques would translate to a functional chair design.

Phase 2: Full-Scale Prototype

The final prototype was constructed at full scale, incorporating all the learnings from previous iterations.

Final Design Plans

My final design features a geometric folding pattern inspired by the “waterbomb base” in traditional origami, adapted to create a supportive structure when unfolded. The chair unfolds into a comfortable floor seating position with a supportive backrest angled at 105 degreesโ€”found to be optimal for relaxed sitting during user testing.

Technical Specifications:

  • Dimensions (unfolded): 24″ width ร— 26″ depth ร— 22″ height
  • Dimensions (folded):40″ width ร— 3″ depth ร— 40″ height
  • Weight: 8.5 pounds
  • Materials: 1/4 inch bamboo veneer panels, canvas fabric and 60lb force magnets

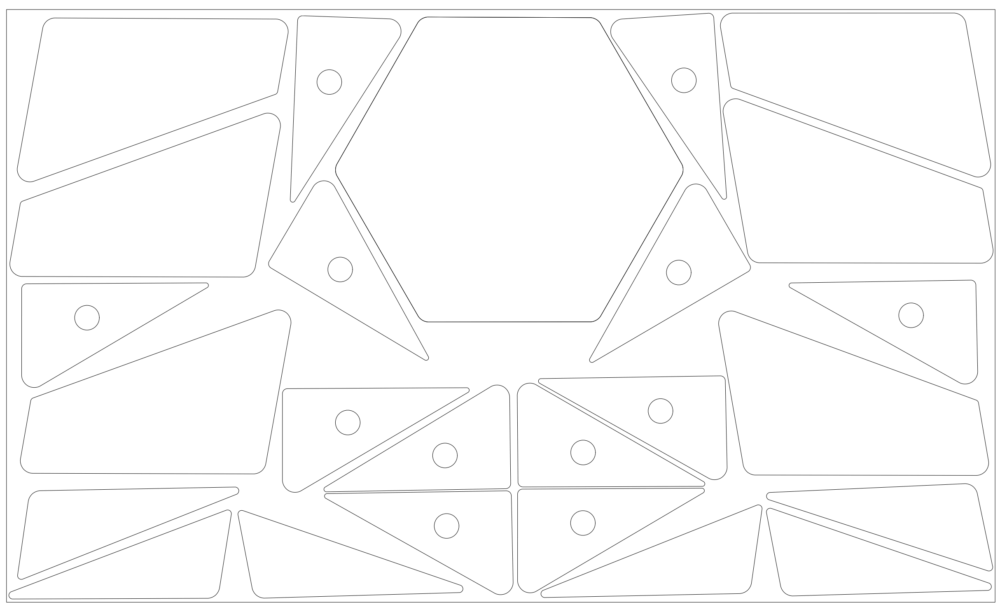

CAD Drawings

The final design was documented through detailed CAD drawings, showing both the folded and unfolded states as well as the specific geometrical relationships between components.







Embodiment of Aesthetic Vision

The final design successfully embodies my aesthetic vision through several key elements:

  1. Geometric Clarity: The chair maintains clean, precise lines even in its three-dimensional form, creating a visually striking piece that references its origami inspiration without being overly literal.
  2. Material Expression: The natural bamboo grain provides a warm, organic quality that contrasts beautifully with the geometric precision of the form. The material’s natural flexibility enhances the chair’s functionality while contributing to its aesthetic appeal.
  3. Balance of Positive and Negative Space: The folding pattern creates interesting negative spaces that change as the chair transforms from its flat to its functional state, creating a dynamic visual experience that evolves with use.
  4. Minimalist Joinery: All connections and hinges are integrated into the design, with no visible hardware, maintaining the clean, unified appearance I sought to achieve.
  5. Tactile Quality: The combination of smooth bamboo surfaces and softer felt-reinforced hinge areas creates a pleasant tactile experience that invites touch and interaction.

Challenges and Solutions

Throughout the development process, I encountered several challenges that required creative problem-solving:

  1. Structural Stability: Early prototypes showed weakness at the junction between the seat and backrest. I solved this by incorporating a tension system using natural cotton webbing that provides additional support when the chair is under load.
  2. Hinge Durability: Finding a hinging mechanism that could withstand repeated folding while maintaining the origami aesthetic was difficult. The solution came through the development of a composite hinge using the felt-reinforced paper material, which provides both flexibility and durability.
  3. Weight Distribution: Initial full-scale prototypes revealed uneven weight distribution that caused discomfort during extended sitting. I adjusted the geometry of the seat pan and added subtle contours to better distribute the user’s weight.

Conclusion

This origami-inspired floor chair represents the culmination of extensive research, material exploration, and iterative design thinking. By merging traditional folding techniques with contemporary furniture design principles, I’ve created a piece that fulfills its functional requirements while embodying an aesthetic that celebrates transformation and geometric elegance.

The project has deepened my understanding of how traditional craft techniques can inform modern design solutions, particularly in the context of space-saving furniture for contemporary living. The constraints of creating a folding structure that remains both visually compelling and physically functional pushed me to develop innovative approaches to material selection and structural design.

Moving forward, I see potential for expanding this design language into a broader collection of folding furniture pieces that address various needs within compact living spaces, all unified by the principles of origami-inspired transformation and material honesty.

References

Bรฉhar, Y. (2022). Sustainable Materials in Contemporary Furniture Design. Journal of Sustainable Design, 15(3), 42-58.

Lang, R. J. (2011). Origami Design Secrets: Mathematical Methods for an Ancient Art. A K Peters/CRC Press.

Miyake Design Studio. (2020). 132 5. ISSEY MIYAKE: The Process and Philosophy. https://www.isseymiyake.com/en/brands/132_5

[Note: All images marked “Original work by author” are my own creations and do not require external citation.]
