There has actually been some fairly substantial update to my progress.

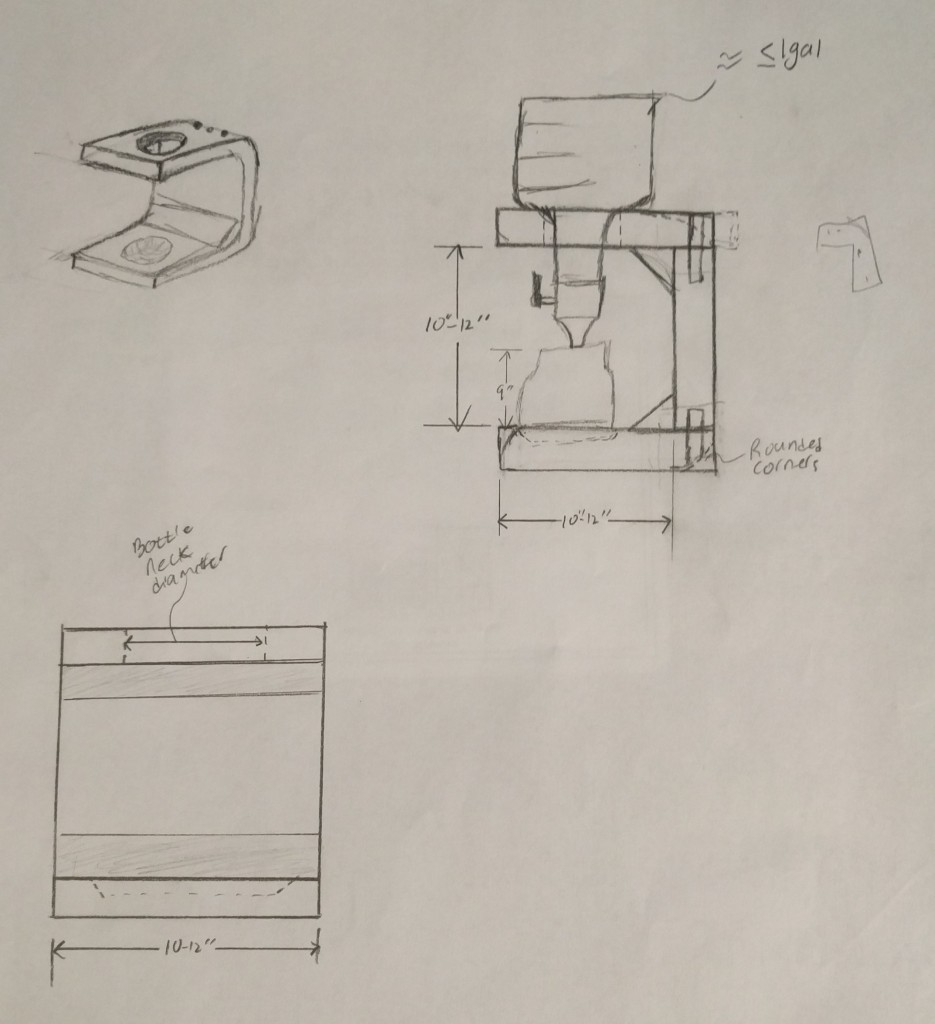

  1. Have settled on a design that is elegant, as well as simpleIMG_20160406_180350
  2. Have planned out how to make the frame (still depends on a few material choices for the main container later)
    1. Frame will be made of wood and secured with dowels, screws, glue, and possibly L-Brackets for additional support
  3. Went to McGuckin Hardware and talked to a few people at the store to get a sense for how the rest of the build will go
    1. gave a few options for bowl material

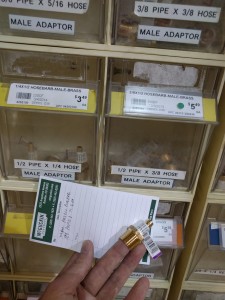

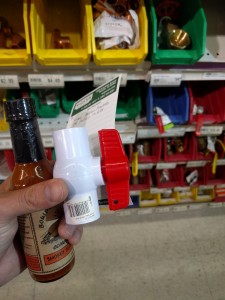

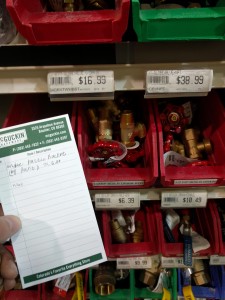

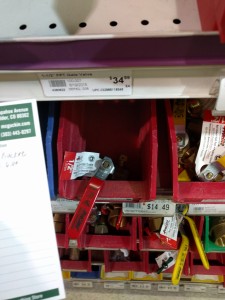

      1. Plastic or metal piping (would need to assemble it, but gives most design freedom)
        IMG_20160406_135510IMG_20160406_135929IMG_20160406_135633IMG_20160406_135655
      2. ****notecard/sauce bottle is for scale reference later*****

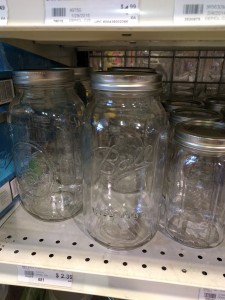

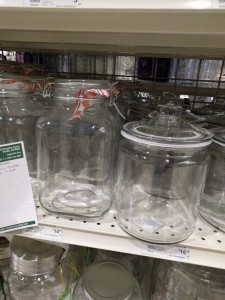

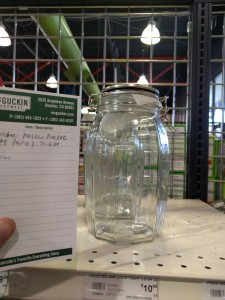

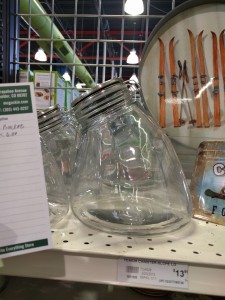

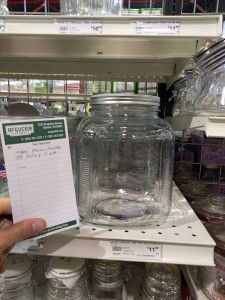

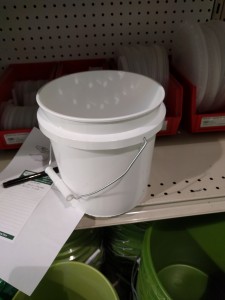

      3. Already made containers and manually adding a valve (can help speed up the build process, but limits possible aesthetics and size)
      4. IMG_20160406_133742IMG_20160406_134725IMG_20160406_134741IMG_20160406_134749IMG_20160406_134806IMG_20160406_134755

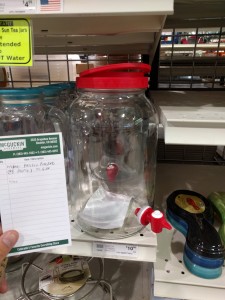

      5. Use something 100% done with a valve (easiest thing, but least design freedom)
      6. IMG_20160406_134839
  4. Plan to try to select &  gather final materials by the end of this week
  5. Plan to start fabricating on Thursday 4-7-16, or Friday 4-8-16
