I have made a lot of progress on my final project.  I would project that I am 90% complete with the project and plan on completing the remaining 10% this upcoming weekend.

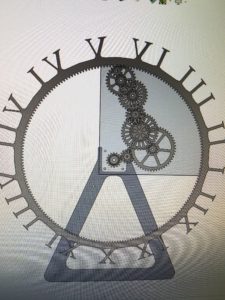

  • CAD model was finalized and all dimensions were finalized

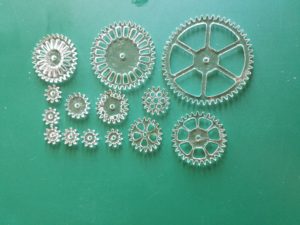

  • Material was purchased and parts were cut using the laser cutter

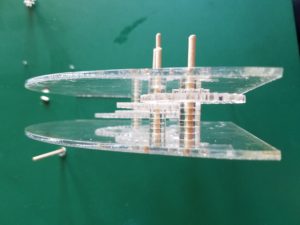

  • Parts were assembled in order to ensure fit and function of gear box

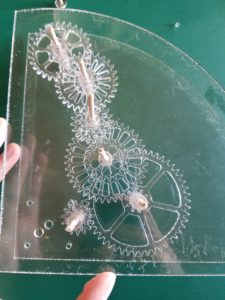

  • Spacers were used to make sure that all gears were perfectly aligned

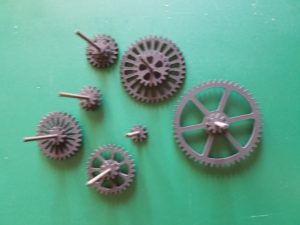

  • Parts were then spray painted black to add a base coat for weathering technique

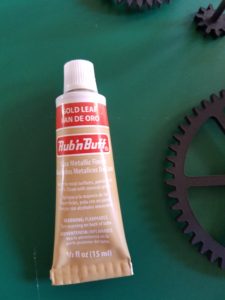

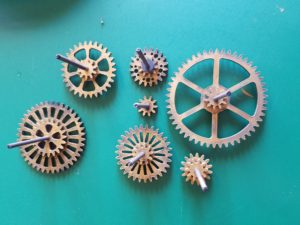

  • “Rub N’ Buff” was applied to gears to give an appearance of gold metal gears

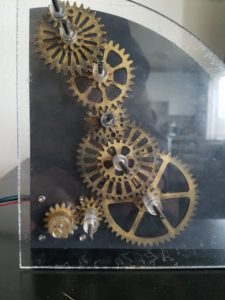

  • Gearbox was then ready for final assembly
  • The stepper motor has been coded and the gear box functions as intended
  • The only remaining parts that need to be manufactured are the outer gear that will display the hours and the stand that holds up the stepper motor to display
    • These parts will be made using the same technique and material that were used for the gears.

Overall I am very pleased with my progress thus far. From the progress pictures above it looks as though everything has gone smoothly without many problems. I assure you that is not the case, I have run into many problems and plan to include them in my final presentation.
