Double Pendulum Manufacturing Plan

For this blogpost I will be talking about the plans to create this double pendulum violin design. I have searched ways in order to create a double pendulum and a good video source is shown below. There are a lot of manufacturing videos similar to this so I think I will have pretty good guidance into making good joints and being sure that the pendulum will be able to move. In terms of having a pendulum that will move in the random motion like I would desire, I am unsure about the weighting and will need to figure that out with some research or through purely experimentation.

As can be seen the actual assembly will be relatively easy. I will be making this design out of wood. A lot of these pieces will be made out of laser cut wood and layered with glue. The real challenge of the project will be being able to weight the arms in a manor that will represent the project while also maintaining the random motion functionality.

Currently, I have been planning on using realism to try to make the product look like a real violin shape that would accurately pass for a violin. In this exercise, I will be trying to explore other aesthetics that could be used to as an alternative to the realism aesthetic that I have chosen. I have 3 favorites that I came up with. I am seriously thinking about replacing the realism aesthetic.

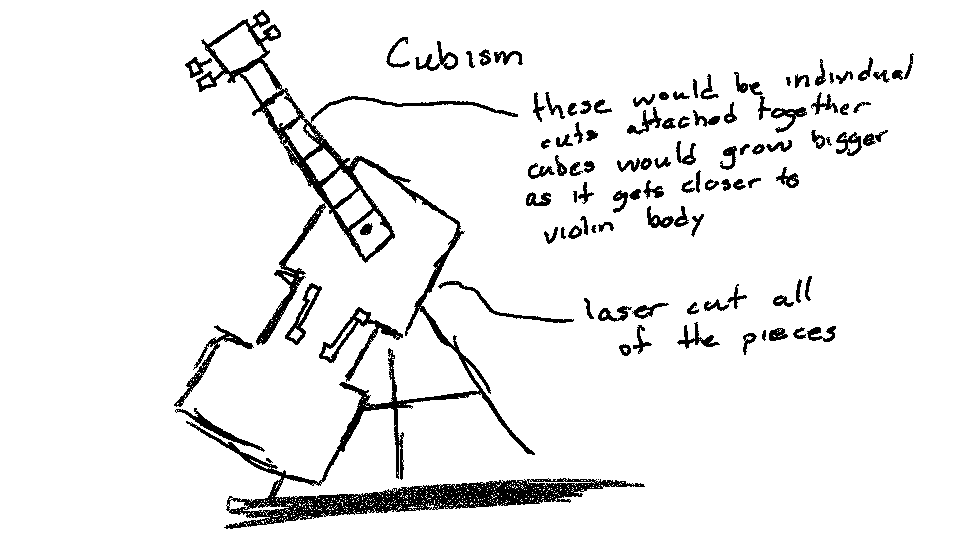

This aesthetic is a method of expressing reality through geometric shapes (almost exclusively cubes) As seen below is a representation of the cubism design idea that I could incorporate. I like this style because it is able to still clearly capture what the object being represented without losing too much. I also like this idea because it would make manufacturing a working model extraordinarily easier. In terms of representation it is not my favorite, however it is a great fallback method that I would thoroughly enjoy in the event current plans would become unattainable.

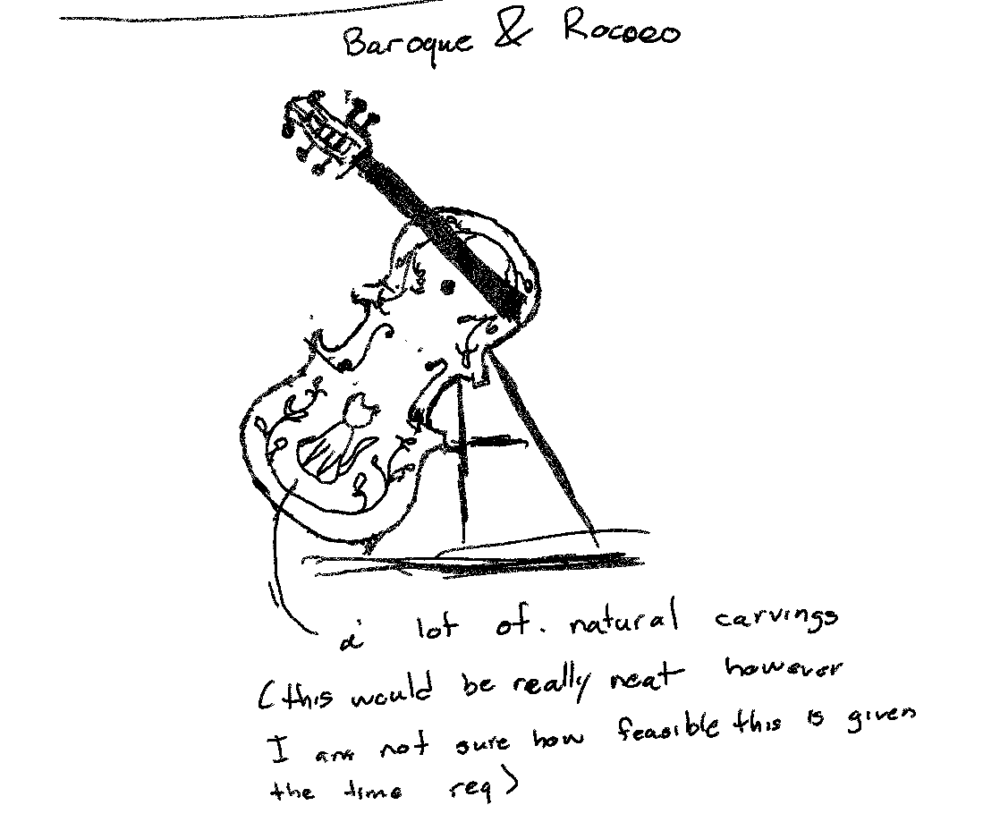

Baroque and Rococo:

This would be an ideal method. Being able to carve this in the front would be really beautiful, however I do think that it is outside of attainable goals simply due to the time requirement it would take to get the detail that I would want.

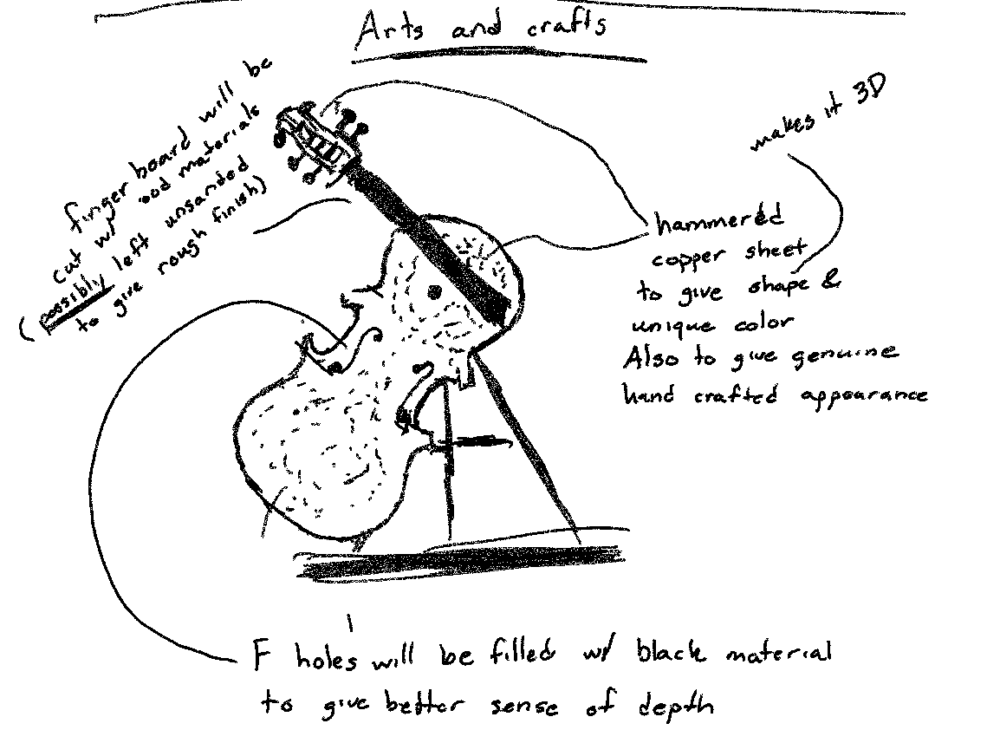

Arts & Crafts

I really enjoy this idea. I think that using hammered copper to represent the exposed wood color would give a rustic craftsman look to the piece without taking away from the realistic look I am aiming for. Since copper is dense, this would affect the weighting; however I think this would be worth it. I really like this idea and think that I will try to aim for this aesthetic design. I already have some good ideas for manufacturing and giving the copper the 3D effect I would want; however, I will first need to visit the manufacturing center before making such claims because I already am already working with some things I am unfamiliar with
