Guinea Pig Storybook Castle – Progress Since Design Preview

For my project I am making a storybook castle playground for my two guinea pigs, Boba and Mochi. My motivation was to give them a safe play environment when I take them out into my yard during the summer. My progress from Spring Break to now is outlined below.

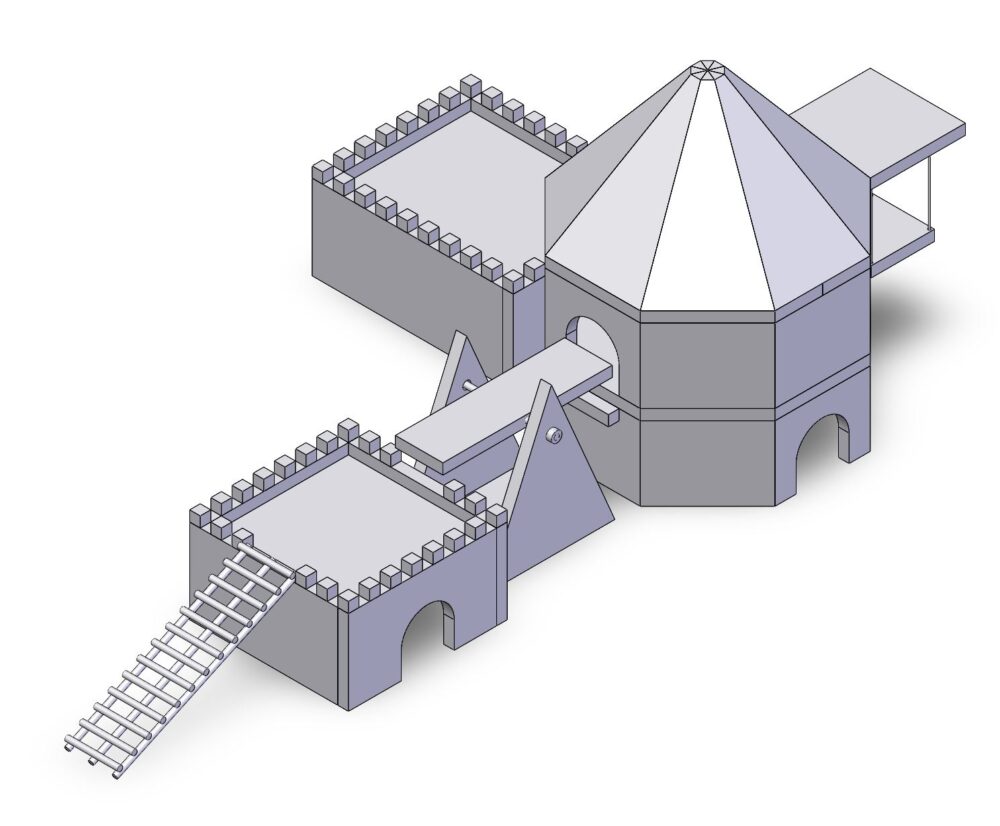

Front-left view of guinea pig storybook castle


Material Procurement and Prep

Using my Solidworks parts, I first laid out all the pieces I would need for my design on a model of the wood panels I would be purchasing (1” x 12” x 36”). This would help me determine how I could more efficiently use the wood panels and reduce waste and costs. After this step, I determined that I would need 11 panels, and priced at about $8 each, my total came out to be $88.

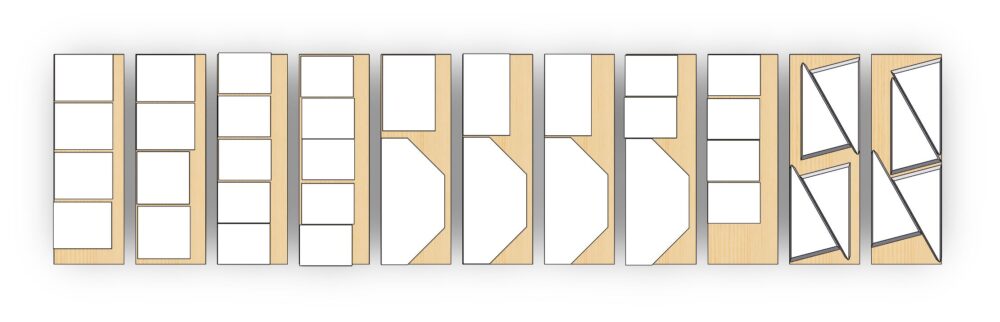

Layout of wood panel for guinea pig castle


Using the dimensions from Solidworks, I outlined the cuts I would need for each panel. While I planned to do the cuts myself, my stepdad’s tools were not equipped with any safety guards, so he ended up doing the majority of the cutting for me as he was concerned it was a safety risk.

Spire Troubles

While measuring the dimensions of the spire panels, I noticed that the dimensions were off by about 5 inches. To be honest, I chalked it up to being a perspective issue. Because my model was created from lofting between two profiles, so I did not know how to measure the part on a different plane.

It was not until I cut the spire panels that I realized how low and wide it was, and that the angles on the part would not align. I went back to my model and realized that the way I used the loft tool did not make the perpendicular cross section of my model 1” thick, but actually only .76” thick. Therefore, my panels did not fit and were too small.

I will be considering another way to decorate the top of the watchtower, as I have already exceeded $100 for supplies. However, I plan to repurpose the spire panels for my see-saw bridge so it does not go to waste.

Wood Panel Troubles

Because I tried to purchase a relatively soft, light, and cheap wood, as my stepdad and I tried to make cuts, a lot of the pieces were splintering if the panel was not dense enough. This was especially troublesome when we used a handsaw to make the curved doorway cut. A couple of the panels split, but it was easily fixed with glue. I tried my best to sand down the panels and minimize the appearance of splintering.

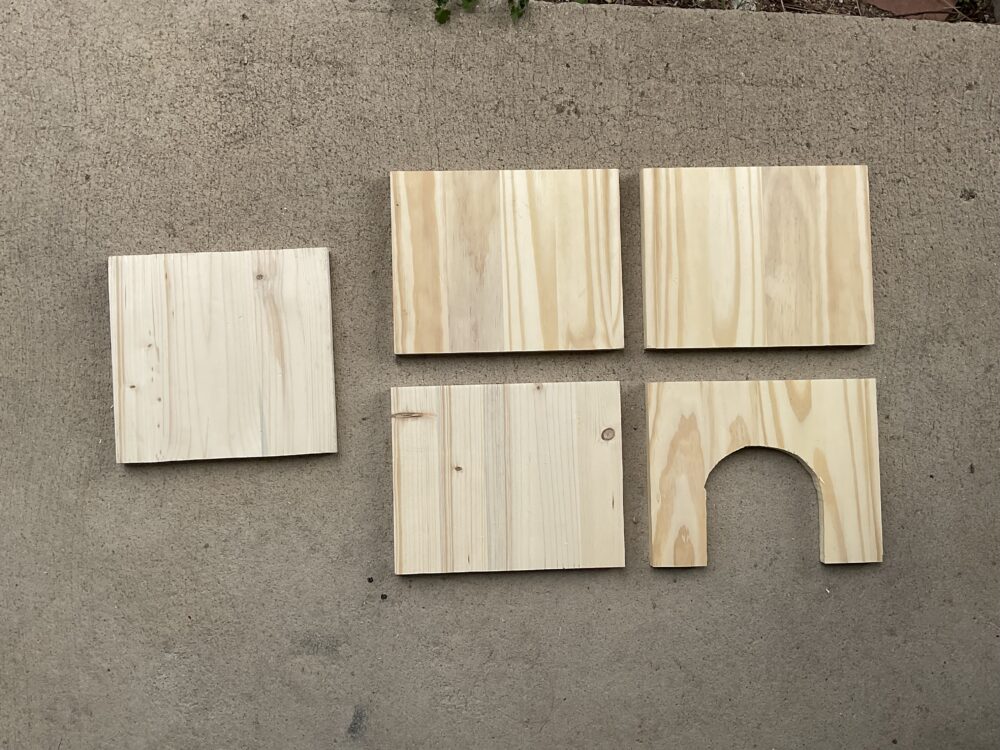

Wood panels for barbican

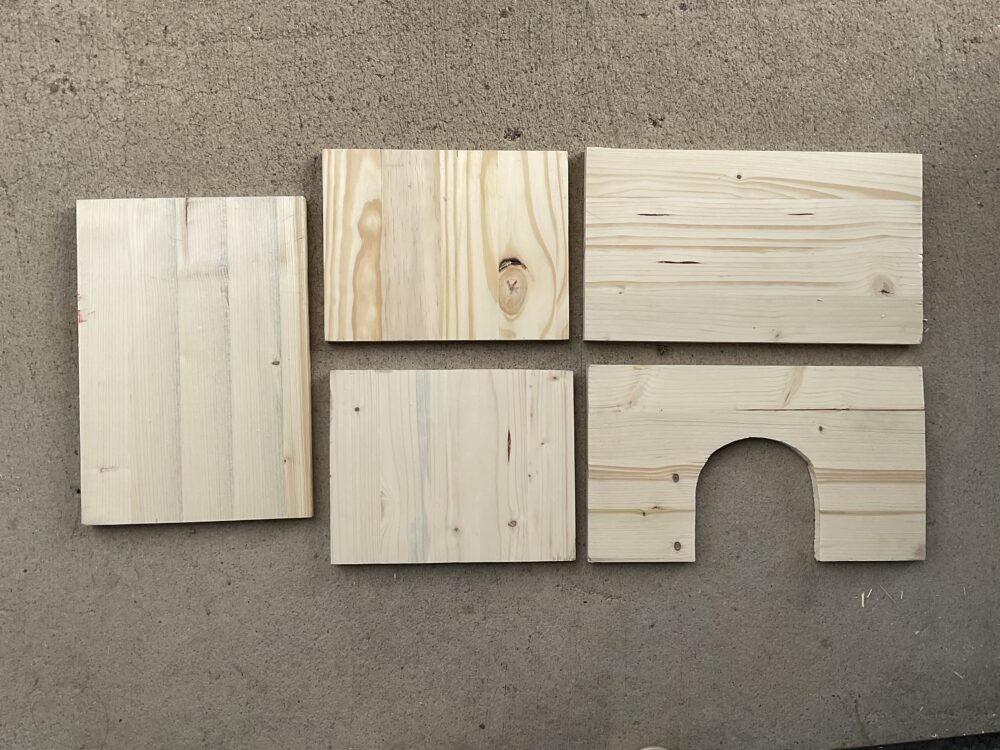

Wood panels for bailey

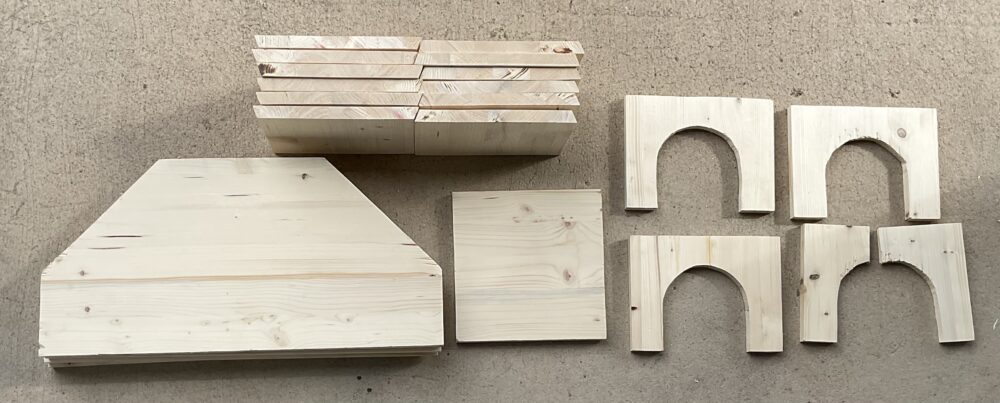

Wood panels for watchtower


Barbican Built

The first component of the castle I decided to build was the barbican, as it was relatively the smallest and easier. I started off by measuring how low I wanted the floor panel to be and marked the drill marks I would need for the L brackets. Starting with the floor, I made a loop attaching the side panels. At this point, the panels were not aligning right, and I realized that the 1” wood panels I purchased were actually only 3/4 “ thick. Despite this, I continued with screwing together the panels, and it was quite sturdy without wood glue.

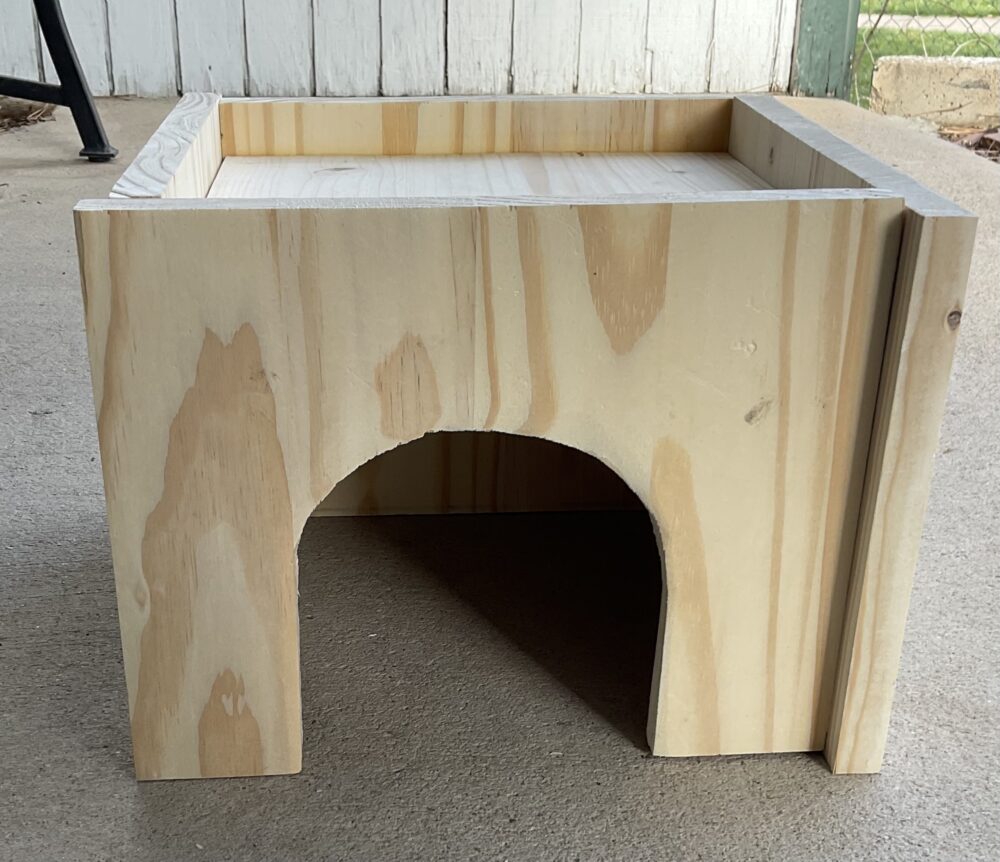

Constructed base of barbican

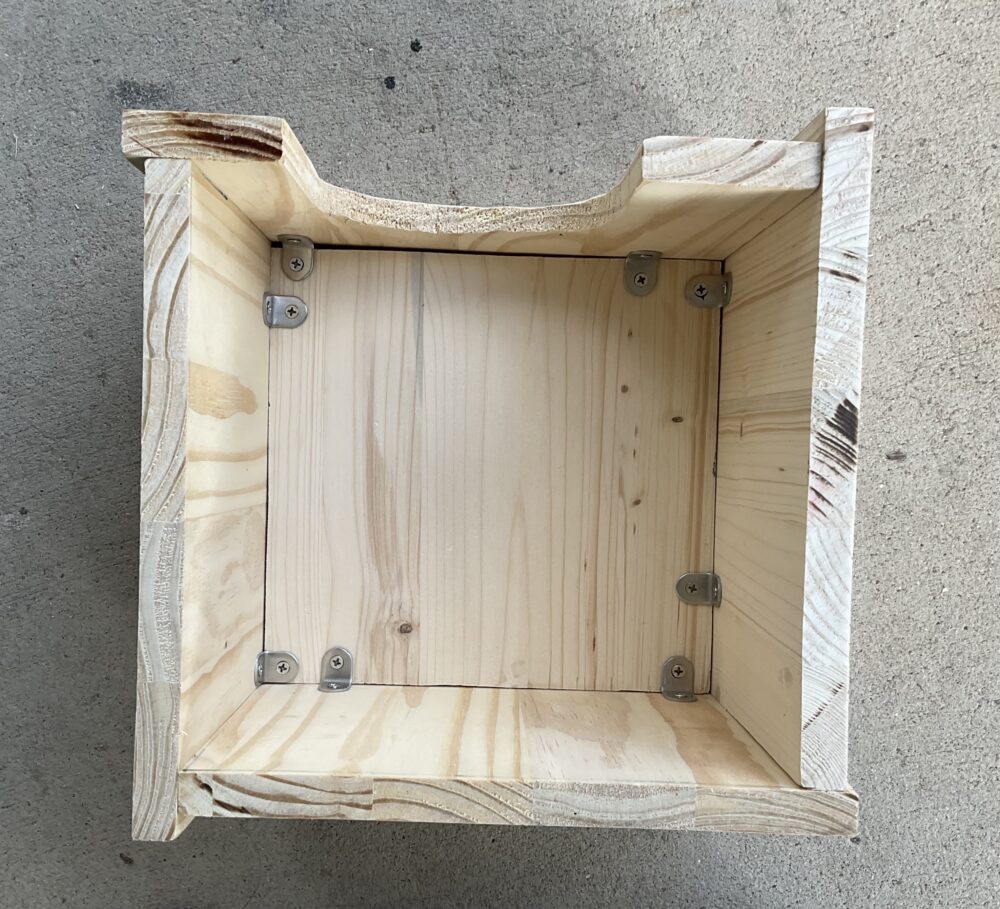

Underside of barbican

While it does not look as pretty or pristine as in my model, I’d like to think my guinea pigs are pretty forgiving. I may paint extra vines or flowers on the corners jutting out to make it look less awkward.

Next Steps

This week, I hope to order the remainder of my supplies to make the ladder, see-saw bridge, and swing, as well as wrap up the construction of the castle.
