Update 4/6/2016 Lazy Susan Kitchen Device (LSKD)

1.) Everything went to shit

Unfortunately the 3D printing company that was going to print my design for free, had a machine that broke down and as a result could no longer print my design for 6 months. As a result I had to start redesigning last week on Thursday. I started my baking quick sketches and going to HomeDepot to determine what materials were available. My design started to incorporate wood which would have to be painted black/white to keep up with the modern theme. The design became more square and had more sharp corners, this should also help improve the modern theme. Ideally it would be made out of plastic, but finding acceptable/inexpensive plastic on such  short notice was not feasible.

2.) Redesigning and hand drawn initial sketches

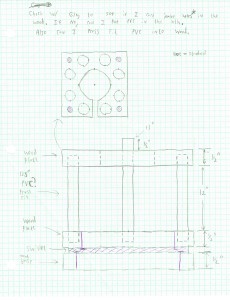

The initial sketches for my design involved a circular base with a few pipes extending upward to another circular plate which had holes to place the spices, see figure 1. After CADing up this model, I discovered that this design was not feasible and made a new design.

Scan 4

Figure 1: First rough idea.

The new design incorporated a square base, top plate and side plates. This design had holes in the side plates in order to hold the spices, see figure 2.

Scan 5

Figure 2: Second rough idea.

3.) CAD

After CADing this, I discovered that I could hold at least 12 spice jars and could make a small rack for olive oil/salt/pepper/other. See figure 3.

IMG_1589

Figure 3: Spice rack CAD model.

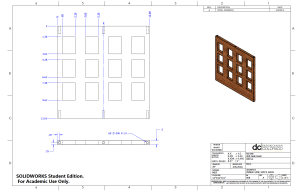

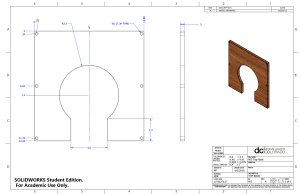

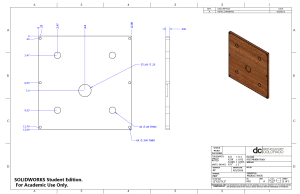

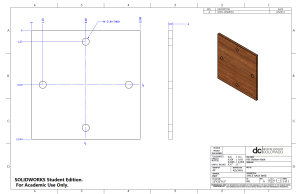

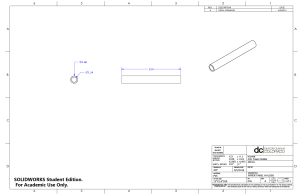

4.) CAD Drawings

The final drawings for my CAD models are shown below.

Screen Shot 2016-04-05 at 4.15.31 PMScreen Shot 2016-04-05 at 4.15.15 PMScreen Shot 2016-04-05 at 4.15.55 PMScreen Shot 2016-04-05 at 4.15.41 PMScreen Shot 2016-04-05 at 4.16.22 PM
