Design Review

First Impressions

When I first began this project, I wanted to make sure that my personal style was obvious. I am a light hearted person who loves colors and gold. I talked about my art and love for jewelry in my previous posts. Jewelry, especially statement jewelry, is my favorite form of art because it alters to the person wearing it and how it is worn. It is dynamic within itself. On the first impression I want it to be a piece that makes a statement in both color and form. I want the mechanical components to be seen as pieces of art rather than functional mechanical components. I want it to draw attention and have a very preppy look. My style is not steam punk so I would like to add color and sparkle to the gears to integrate the two styles.

[1] Colorful Statement Jewelry
[1] Colorful Statement Jewelry

The functionality of my piece adds to the aesthetic and serves no practical purpose. It is hanging art that can be altered with user input. I have not figured out the exact design of the project, but I intend to have a base plate that has gears mounted on it by gold pins. These pins will allow the gears to freely spin and mesh. I want to attach several components that will fold out when the gears turn. This will change the shape of the necklace. Its function is a piece of wearable dynamic art


When I first declared my major as mechanical engineering, one of my best friends gifted me a mechanical gear necklace. It was made of simple balsa wood and the gears were connected in such a way that they rotated altering the shape of the necklace. I loved the necklace, but the fragile wood soon broke and it has long since been thrown away. The design was similar to the image below. This design allows the user to ensure all the gears mesh and turn. This could be a perfect design to prototype with the laser cutter.

[1] Balsa Wood Gear Necklace
[2] Balsa Wood Gear Necklace
After looking at designs online I realized that I also loved the look of different metal gears with different size teeth. I assume this will be more durable that thin wood and create a more unique aesthetic. There are also various forms of jewelry including necklaces, rings and potentially even bracelets. A range of the potential products are shown below.

[2] Gear Bracelet
[3] Gear Bracelet

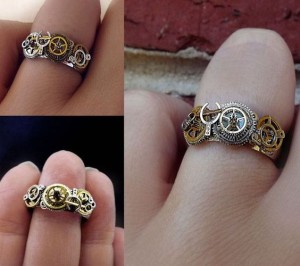

[4] Gear Ring
Critical Components and Prototypes

The trickiest component of this project with me the mount plate. In order for the gears to properly turn and align, there needs to be a gear mount plate. Originally, I wanted to look at making bracelets and rings. Both of these will require very small gears and mounts. I intend to try design for a necklace, bracelet, and a ring. However, I am concerned that the structural integrity of the design will decrease as we decrease the size of the components. I plan to print several designs for each type of jewelry. This will allow for adjustments and testing on the integrity.

Cost and Timeline

The following timeline is a basic outline of the project:

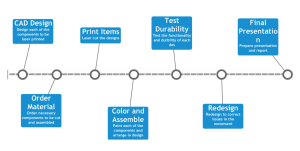

Timeline for the Final Project

The following is an approximate cost of each piece:

Item Number of pieces Cost
Sq. ft of acrylic 1 $8.00
Gold Pins 10 $1.00 ($.10/piece)
Paint 1 $5.00
Chain 1 $3.00
  Total Cost Per Piece $17.00
