Project Update: Glass Writing Boards – March 29

Here are updates on my project since my big update last time (link). The important update is that I was able to finish my first prototype before spring break!

Goals:

  • Create product to include in presentation to facilities/ResLife
  • Test manufacturing methods
  • Gain clarity on future design changes, specifically focusing on the framing.
    • Wood, extruded metal, combination?

Tools used:

  • Miter Saw
  • Table Saw
  • Router
  • Carpenter’s plane
  • Drill press
  • Hand drill and circular saw

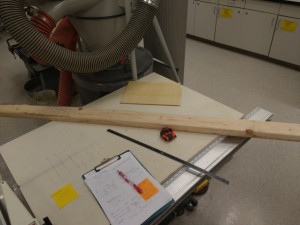

First, I prepared the lumber with a table saw – 4 sections had to be cut from the 8′ 2×4.

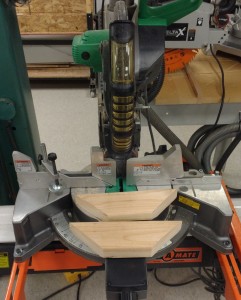

The four side pieces were then given angled cuts (45o) with the miter saw.

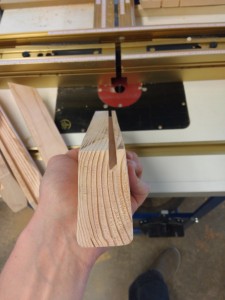

A ¼” router bit was used to put a slot through the sides.

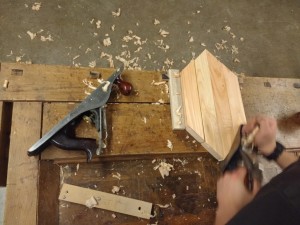

After touching up the pieces with a carpenter’s plane, the front looked much better.

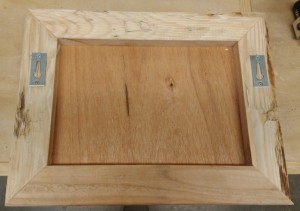

Completing the frame requires the attachment of the keyhole plates.

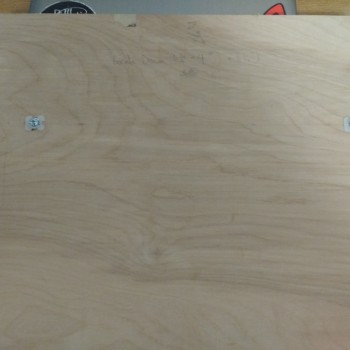

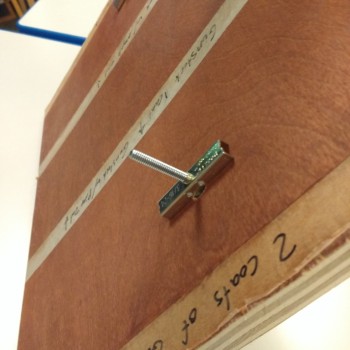

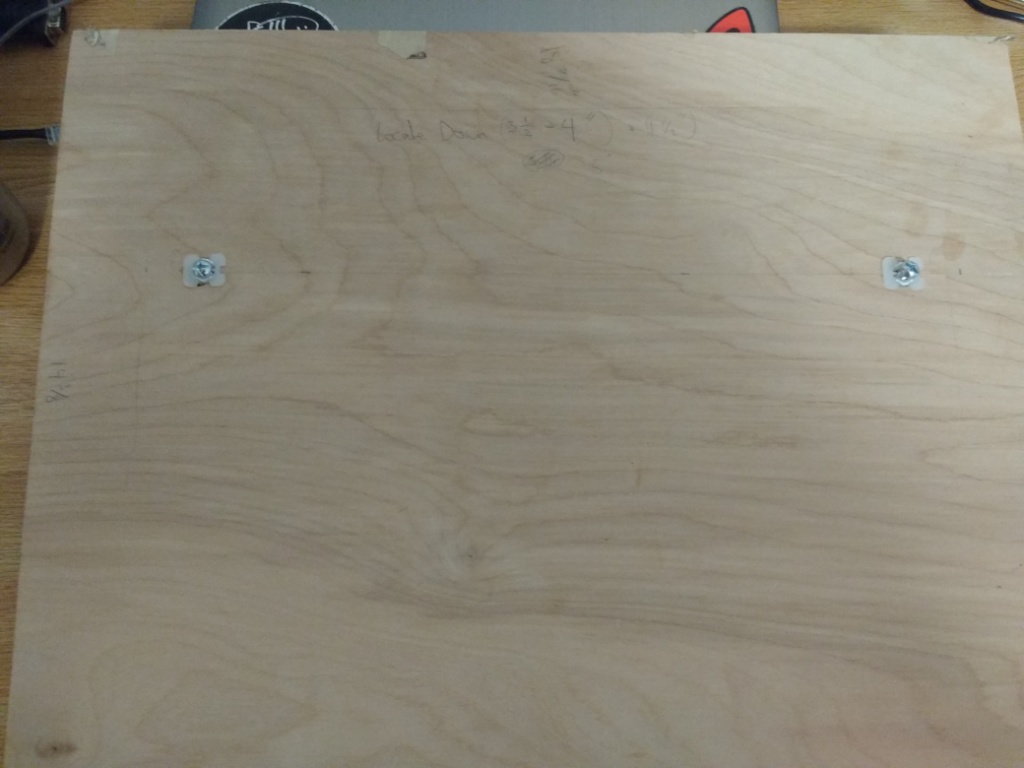

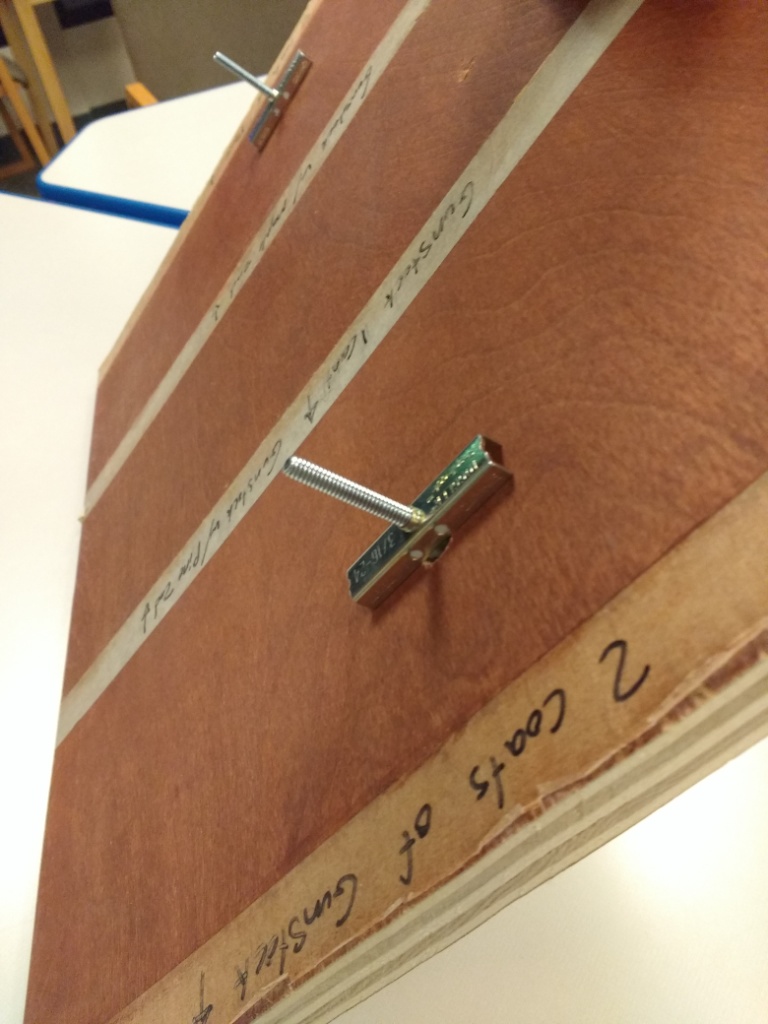

The last step in making a working prototype was to put two snaptoggles into a spare piece of wood which represents the wall. After this, the frame was able to hang on!

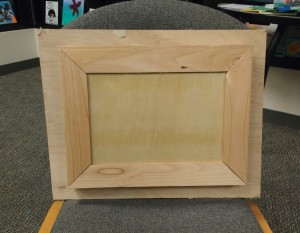

Completed Prototype:

Lessons Learned:

  • Smooth the lumber with the planing tool BEFORE the other manufacturing steps. This will create a higher quality frame with better uniformity/symmetry.
  • Future woodworking, especially for the location of holes, needs to be more accurate.

Meeting with Facilities/Housing&Dining: I was unable to attend the brief meeting that finally happening with facilities and ResLife staff before break, but a huge shout out to Sami for being able to! Here are the results:

  • First meeting to talk about the idea – there will be later meetings to go over redefined design(s)
  • Any attachment to walls must be under 4 inches
  • Look at IBC (international building code) for required standards
  • Definitely use safety glass!
  • Wall attachment method should match the prototype (snaptoggle plus keyhole plate), but add screw on the bottom for securement so it can’t be lifted off
  • No fabric in the design
  • Metal frame would be better than wood frame
  • Give both options (metal and wood) to fire marshal
  • Need to get board locations selected sooner rather than later for approval
  • 3’ x 5’ is a better size for the wall (need to look at weight)
  • Before the glassboards can move forward, EHP/facilities/residence-life are going to put together a process for submitting/approving proposals.

Because of this, my project will likely become that of an advanced prototype for the end of the class.

20th Century Design Movements:

These are the specific design movements of the 20th century that are influencing my design:

  • International Style – especially for the metal frame design that is next to focus on
  • Arts & Crafts – use your hands to make something special and that stands out as homemade!
  • Constructivism
