Mechanical Buffalo – 4-13-16 Update

Ralphie IV lives!!!!!

*MIC DROP*

***

Ralphie V is currently printing. In real life, the current Colorado Buffalo is Ralphie V. Therefore, this is the final design iteration :).

I have made some minor adjustments to improve the toy’s ability to be assembled.

ralphie V top

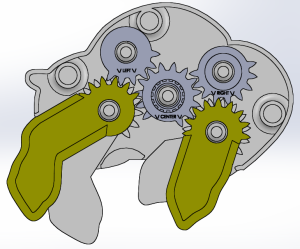

As you can see, I’ve added arrows to depict the correct orientation each gear needs to be assembled into order to get the legs to move properly.

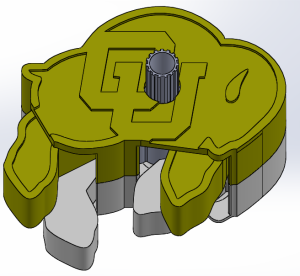

ralphie V total iso



I added some ridges to the twist piece to make it easier to grip.

ralphie V internals

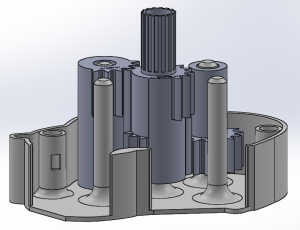

Instead of using standoff features on the gears, I just made the fillet radius at the base of each column the same. The gears will rest at the top of the radii. I also wanted to get rid of the standoffs because they were causing a lot of post-processing issues. The support material on the inside of the standoffs were previously nearly impossible to remove. This is no longer a problem.

Alright, one more week to go and just about done!!! It has been a lot of design and re-design but I am very proud of the result so far. I had never designed anything with functioning gears on it until this project, so I’m really excited to share this project at the expo!
