Design Review: Chess Board Prototype

For my final project, I have decided to create a chess board, complete with a storage unit, and possibly a matching cribbage set to go with it.

I began by exploring some ideas, considering a nightstand charging station, or a pair of bamboo ski poles.  I discovered that I liked the wood aesthetic the best.  After more research, I found that the clash of contrasting colors, such as light and dark woods, looked the best.  This is what I wanted to pursue.

Because I value function, I also wanted an eye-pleasing product that would also work and that I could use for something.

The Aesthetic

I want the look to be all wood.  I have thought about introducing bamboo into the wood design as well, possibly create the look of modern/contemporary “columns”.  Often, bamboo isn’t combined with maple or walnut, so it could be a cool look if done correctly.  In a way, I am creating my own aesthetic, which is subject to change as I figured out what is feasible to build.

After a little more thought, I found this image of an example which I could incorporate into my aesthetic.  It is a contemporary Asian vibe, with bamboo that is colored a certain material.

http://asiasociety.org/files/13Shochiku.jpg

I enjoy the look of bamboo added to this design, which is popular in contemporary Asian culture, as seen in the images below:

Pinterest

Houzz

Here are a few images of my thoughts:

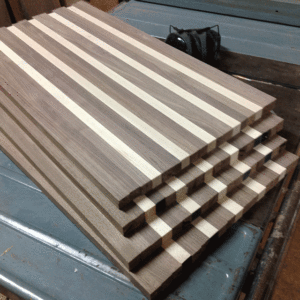

https://michaelswoodcraft.files.wordpress.com/2015/10/black-walnut-and-maple-end-grain-board-in-progress.gif

Michael’s Wood Craft

https://
i.ytimg.com/vi/gliOZyHkdps/maxresdefault.jpg

Youtube-I like this because there is a wood pattern in the middle, with a nice polished border on the edges.  I could do something like this for my item.

http://www.danielsstudios.com/Includes/Photos/Products/Photos/124-2.JPG

I like the color scheme on this.

Overall, I like the combination of woods, with a little flavor of Contemporary Asian.

Build Process:

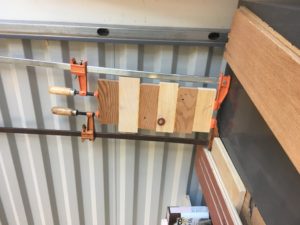

To demonstrate the aesthetic and learn about the build process, I decided to make a mini checker pattern.  This allowed me to learn what types of wood worked best and looked nice. I started by going to the Makerspace to see what kind of scrap wood I could find.  I found some contrasting colors and began to glue them together, using vices to secure them together while the glue set.

I did not worry about the wood being different sizes, as I could cut it down later on.

After it was glued together, I let it set for approximately 24 hours.

I then removed the vices and was left with this product:

From here, I cut the wood the long way to get 3 equal size pieces that I could then use to create the checker pattern.

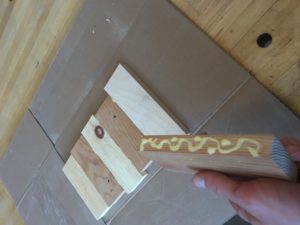

I reglued them together, and let it set for 24 hours again.

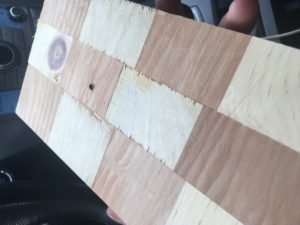

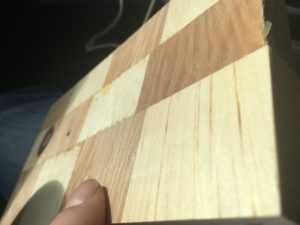

Following this step, I used a hand planar to level all the surfaces and ensure they were even and smooth.

Lessons Learned:

  • Experiment with the grain patterns and directions the grains face
  • Find wood that is the same thickness
  • Leave extra on the ends, you may need to cut it in the end, which isn’t a problem
  • When planing, ensure you have the correct tools
  • Glue the wood together on a flat surface
  • Use the same kind of wood, don’t use scrap wood that I find



Here is the link to my in class presentation: https://youtu.be/ACQeEr3nMVw

To see the slides, click this link: click here
