I estimate that the project is approximately 80% complete overall.

I am about 90% done with the stuffed Rick figure, and only need to attach his shoes, and make his hair (out of distressed yarn).

I have completed about 90% of the electrical components, having created a majority of the fixtures that will be mounted to the stuffed figure. I am planning to incorporate fiber optic cables to add into the hair on the figure, and still need to create the mounting brackets and bundles of cable to attach to the LED strips that mount to the figure’s head. The programming is essentially complete as well, although I may make small changes after the LEDs are attached to the figure.

I have not yet attached any of the LED fixtures to the figure, but plan to do so this weekend.

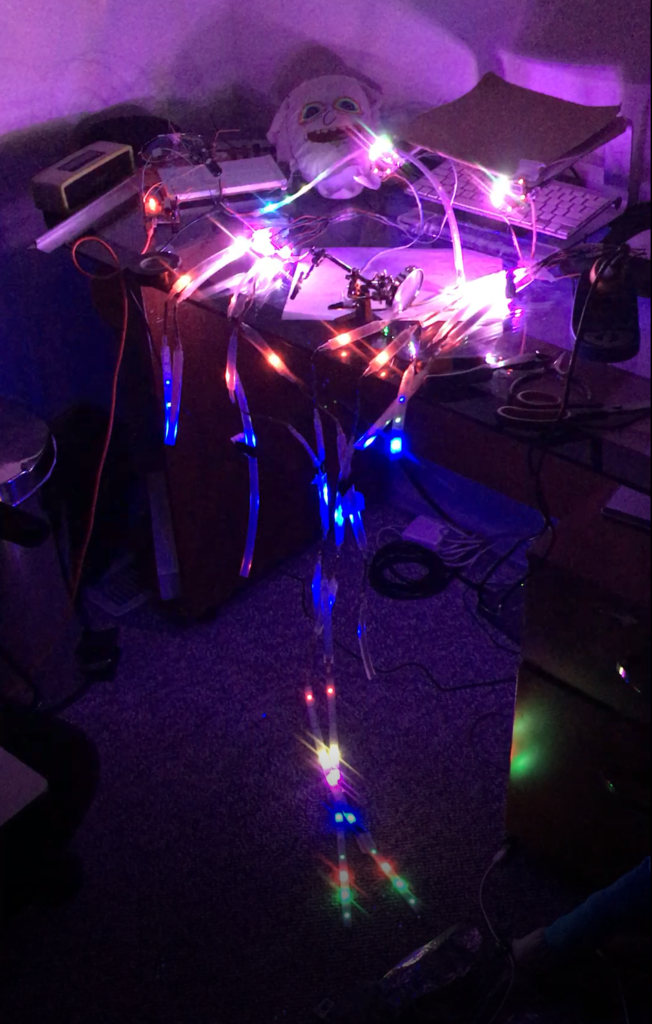

Below is a video of a test of the lighting fixtures from earlier this week.
