Post 8: Design Preview Report: Van Build Bed/Couch

Embarking on the construction of a convertible couch/bed within the compact confines of a Chevy Astro van presents a unique challenge. The aim is to integrate comfortable seating and sleeping arrangements alongside a kitchenette and optimal storage solutions within this limited space. As we plan this project, the focus is not only on functionality but also on creating an inviting, modern, and minimalistic interior.

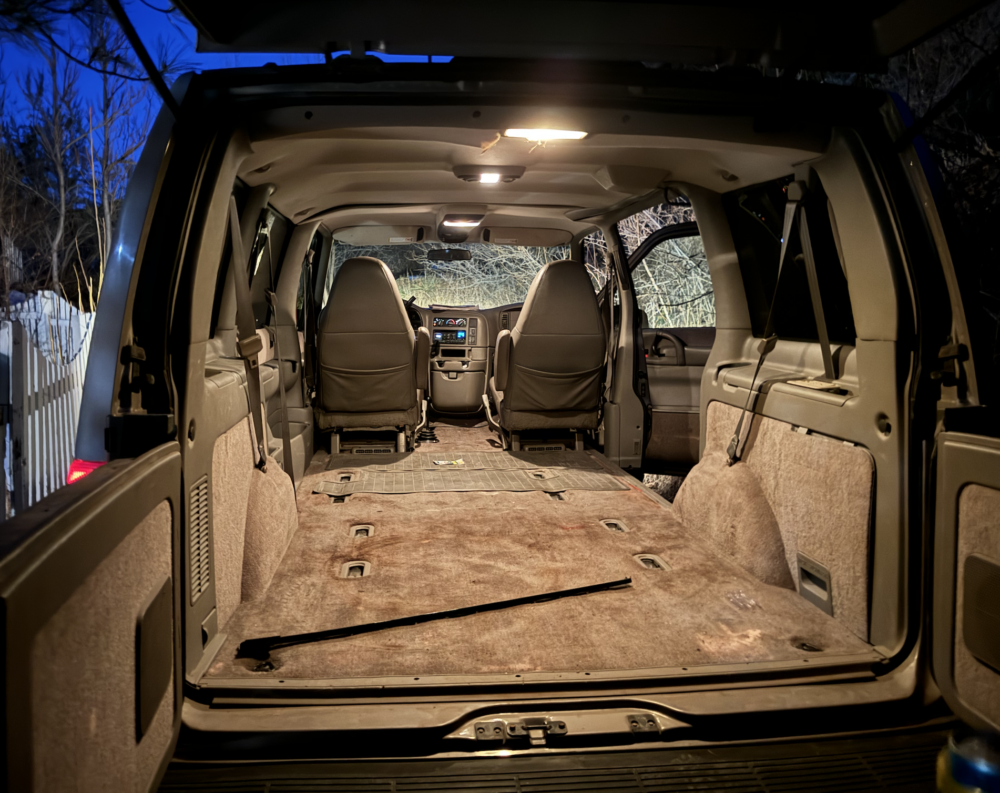

This is what the back of the Astro currently looks like regarding the space limitation I will be working with on the project. I will be gutting the stock paneling and flooring to better match the aesthetic and give myself a bit more space, approximately 5.5 feet in width, 7.5 feet in length, and 4.5 feet in height.

 Future Design Considerations and Objectives

The cornerstone of our design strategy is the seamless conversion between the couch and bed configurations. Leveraging industrial casters rated for 500 lbs ensures the smooth transition of the wooden platform, facilitating ease of conversion. These casters, equipped with locking mechanisms, will secure the platform firmly in either position.


Strategic Placement for Enhanced Usability

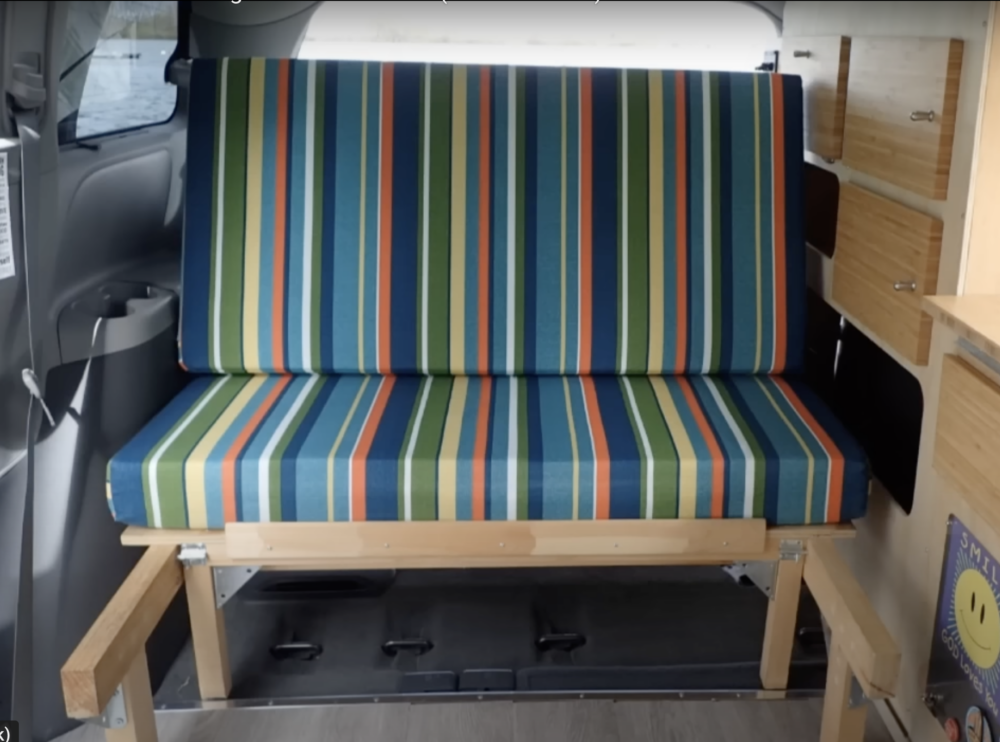

Here is an example of another couch/bed build I found on the internet. It depicts a similar triangle structure and front/back orientation. This build is much simpler and smaller than the one I designed, and it fits inside a Toyota minivan.


My vision places the couch in a triangular configuration, fostering a multipurpose space that encourages conversation and cooking thanks to inward-facing seating. Additionally, the design includes swivel seats at the front and a rear-facing section of the couch, providing picturesque views and thereby maximizing the van’s spatial dynamics and its engagement with the environment.


Aesthetic Blueprint

A computer-generated rendering embodies the type of aesthetic that I will be attempting to emulate in the overall van build and will extend to the aesthetic that I will be incorporating into the Bed/Couch.

I aspire to cultivate a cozy yet sleek atmosphere within the van, utilizing high-quality plywood and a polyurethane finish. This aesthetic will be echoed in the couch/bed design, where earth-toned fabric upholstery will complement wood finishes and drawer facades that reflect modern minimalism.

Planned Construction Techniques

Precision in craftsmanship will be paramount. Table saws, miter saws, and jig saws will be employed to tailor all wooden components to the van’s exact dimensions. Industrial casters will facilitate the furniture’s dual functionality, while paracord systems, attaching securely to the van’s ceiling, will enable an effortless transition from bed to couch mode.

Material Selection for Durability and Comfort

The choice of an earthy green fabric for the upholstery aligns with our vision of a space ready for adventure. This material will not only endure the rigors of travel but also allow for easy maintenance, designed to be detachable and washable, ensuring the couch/bed remains a hygienic and inviting feature of the van.

As we near the realization of this project, our plans for the convertible couch/bed in the Chevy Astro van aim to merge functionality with aesthetic appeal, crafting a space that is both practical for travel and inviting to live in. This project is a testament to the innovative potential of small-space design, ready to transform the van into a more versatile and enjoyable home on wheels.
