Swing Bike Update 4/6

Due to obligations outside class and a need to alter my design a bit, progress has fallen back a bit, although still well within range of the buffer time I integrated into my schedule. What I did do this week though is make that change in my design, become familiar with the tools I’ll need to use in the Idea Forge to fabricate the bike, and borrow some cutting tools I need for the bike (thanks Jeffrey Gay!). I also acquired some spray paint and clearcoat from places around Boulder like McGuckins. Now, I truly am ready to start cutting tomorrow and hopefully start welding on Friday and into the first part of next week. The last week can be used for decorating and the aesthetics part. I will also need to acquire whatever lighting I may add on to this thing.

IMG_20160406_212813

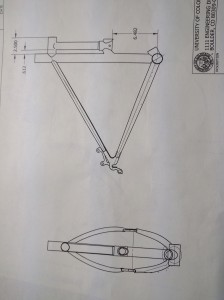

CAD Drawing of the design. The front part of the bike will simply be two tubes attached to the pivot tube and head tube.
