Details on Coffee Brewer Build

The build is mostly done! It was quite the process. The previous process can be seen in my other blog here. From the last point where the wood was cut to size, I started by using a hole saw to cut the hole for the jar and valve (pictures below). Once the hole was cut it was used as a template to cut a small circular recess to help locate the collection jar. The clamps were posing a problem for router access so one half was cut on the table, and the other half was secured to a drill press so that the other half could be routed. The surfaces came out a little uneven and so I took an electric sander and smoothed out the surfaces. Then I took sandpaper and hand sanded the corners and edge so that everything was smooth. I dry fit everything again to make sure it all fits. The frame was secured with clamps and holes were pre-drilled so that the wood would have less chance of splitting once it got screwed. once the holes were drilled the top and bottom pieces were countersunk so that the screws will be flush with the surface. The pieces were then glued and screwed together and held with clamps while the pieces dried. Next the angle brackets were ground down so that there could be more room for rounding the corners of the wood. The holes were then marked out on the frame where the brackets are going to be, and had holes pre-drilled. Then the brackets were screwed into place. The jar and valve were placed on top to ensure correct sizing. A hole saw was used to make a hole in the lid for the valves. The problem was that the metal was thin and there were concerns about the saw tearing the metal. Wood was used to hold the top and bottom of the lid so that there would be more support. The valve was screwed into the hole. The fit was perfect. The last few steps involved dremeling out channels for the corner covers so that they hide the brackets. Once they all fit, then they were glued and clamped. Once the glue is dry, the project is done! I have wood stain and will staining the frame over the next few days. I also have clear protective coat for more protection to the finish.

(apologies for the poor formatting of the pictures. Nothing I do seems to get them to be in a clear order, but for the most part just go left -> right, and top -> bottom for the most chronological order).

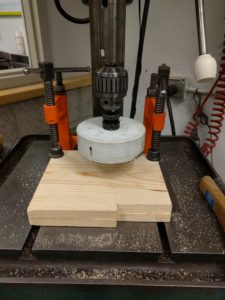

Cutting out hole for jar

Cutting out hole for jar

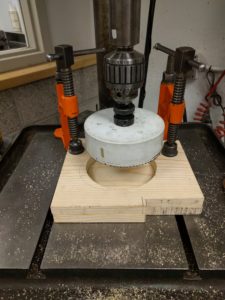

Hole after being cut

Hole after being cut

Using hole as a template for collection jar

Using hole as a template for collection jar

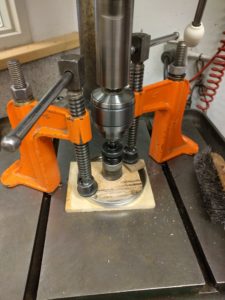

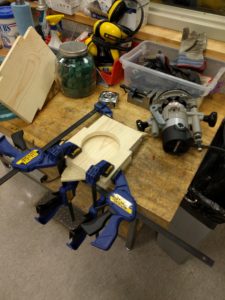

Using a router to create a locating feature

Using a router to create a locating feature

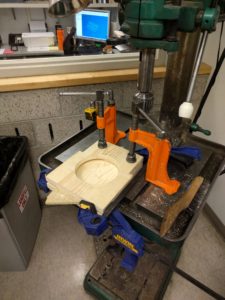

Setup for other half of cutout

Setup for other half of cutout

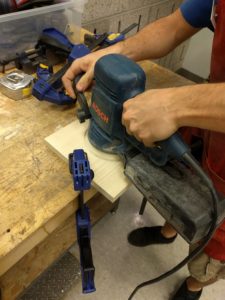

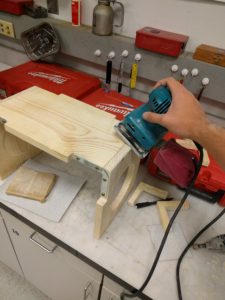

Sanding the recess to level the surfaces

Sanding the recess to level the surfaces

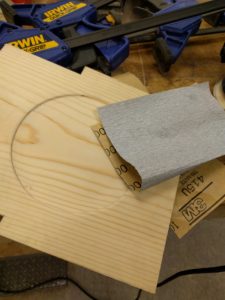

Using sand paper to hand sand edges and corners

Using sand paper to hand sand edges and corners

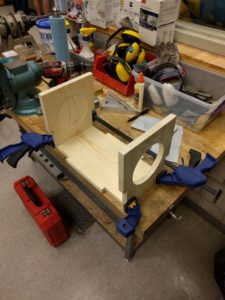

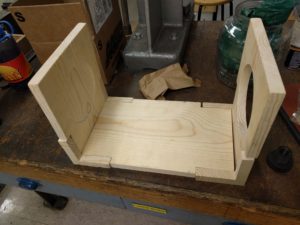

Test fitting everything to ensure it still fits

Test fitting everything to ensure it still fits

Pre-drilling holes for screws

Pre-drilling holes for screws

countersinking the wood for screws

countersinking the wood for screws

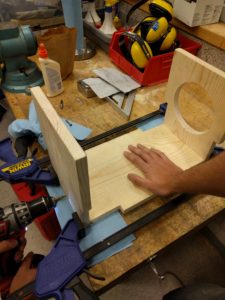

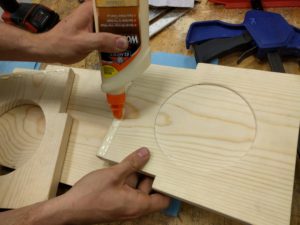

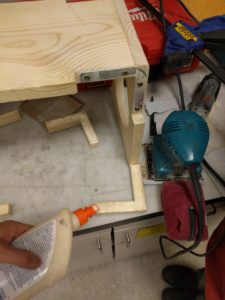

Adding glue to wood pieces

Adding glue to wood pieces

Adding screws for support

Adding screws for support

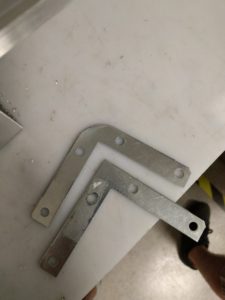

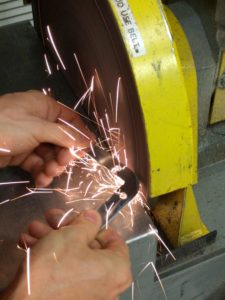

Grinding down the corners of the angle brackets

Grinding down the corners of the angle brackets

Before and after grinding

Before and after grinding

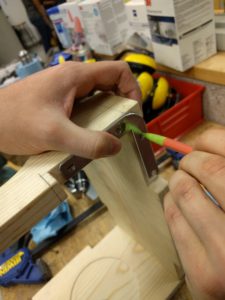

Marking hole locations for the angle brackets

Marking hole locations for the angle brackets

Securing angle brackets

Securing angle brackets

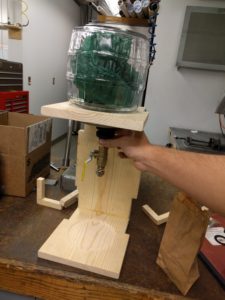

Everything fits! just need to drill a hole in the valves

Everything fits! just need to drill a hole in the valves

Using a hole saw to drill out the hole for the lid and valve

Using a hole saw to drill out the hole for the lid and valve

adding lubrication to metal lid

adding lubrication to metal lid

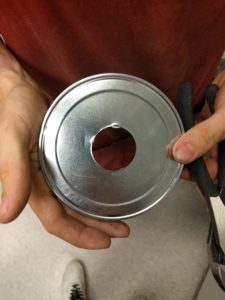

Hole came out well!

Hole came out well!

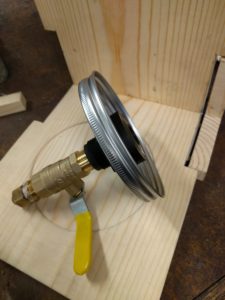

Valve sits well through the lid

Valve sits well through the lid

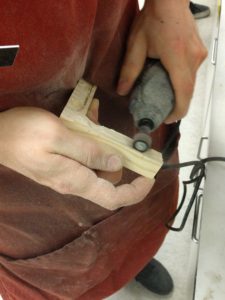

Using a dremel to create channels in wood covers over the angle brackets

Using a dremel to create channels in wood covers over the angle brackets

creating the grooves

creating the grooves

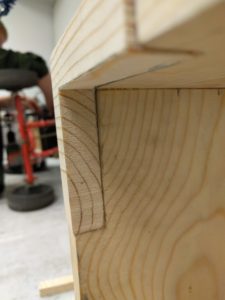

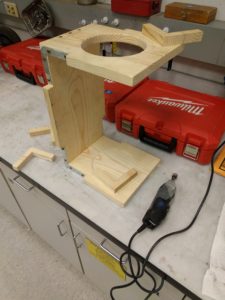

sits relatively well on the corners and covers the brackets nicely

sits relatively well on the corners and covers the brackets nicely

Sanding the corners and edges down

Sanding the corners and edges down

gluing the corners to the frame

gluing the corners to the frame

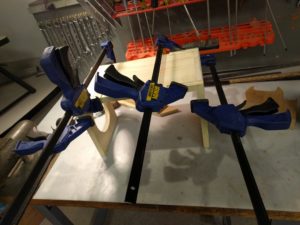

Clamped down while the glue is drying

Clamped down while the glue is drying
