4-13-16 Coffee Brewer Update

A lot of progress has been made on the build of the coffee brewer. I  bought all the materials that we’d need over the weekend and  started building early this week.

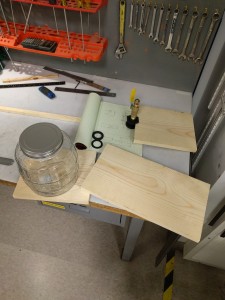

IMG_20160411_180905

Started by cutting the wood planks down to size.

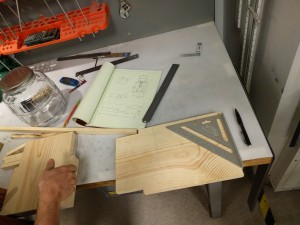

IMG_20160411_181203IMG_20160411_183205IMG_20160411_183936

Then cut out slots for some L-Brackets to help support the weight of the water, jug, and coffee ground.

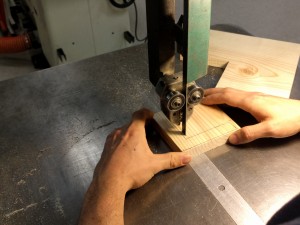

We used a band-saw to cut the covers for the L-Brackets. The plan is to have them hidden on the inside so that all that can be seen on the outside is the wood. The pictures below should help with visualizing the effect.

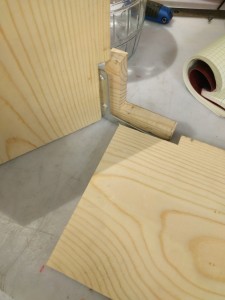

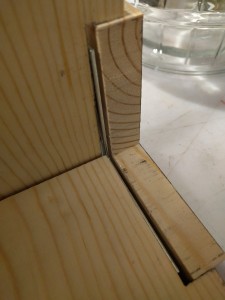

IMG_20160411_185156IMG_20160411_190136IMG_20160411_190153

The covers aren’t finished yet, but I plan on finishing them soon, after I figure out how to properly secure the rest of the frame together.

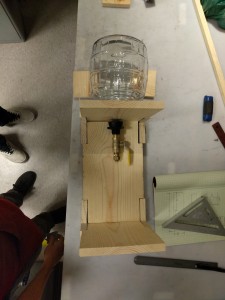

IMG_20160411_190426IMG_20160411_190436

Here is a dry assembly (mock-up) of what the project could look like. To achieve the inside curves I plan on cutting a square chunk of wood in half along the diagonal and then use a round sander to help shape it. We might abandon that idea though, as we are really enjoying the grains of the wood and took extra care to make sure they lined up as close as possible when the pieces are assembled.

It is turning out to be a lot bigger than both my friend and myself have originally thought. This is okay though, because we added a lot of extra “slack” in the design in case something went wrong. I plan to keep building tomorrow and should have the frame basically done. We bought two different kinds of stains and plan to stain the insides and outsides different colors.

I hope to have the container done soon as well. The only thing that needs to be figured out to finish the jar is how to punch/cut a hole into a stainless steel lid.
