Upcycle Final Report: Cardboard Night Lamp

One of the side effects of moving in from different country, as I did six months ago, is that I ended up with a lot this.

So, when we were given an upcycling assignment, I had little doubt about what raw materials I was going to use for the project. Yes, I decided to use cardboard. But, what do I make with cardboard. I looked up online to my astonishment that there are people who make a lot of stuff with just cardboard. I decided to make a piece of furniture considering the size of all the boxes. But, all the boxes I have are made up of single layered cardboard which might not be really stable for furniture. Hence, I decided to make something smaller that would not need to carry a heavy load. I ended up deciding on a night lamp.

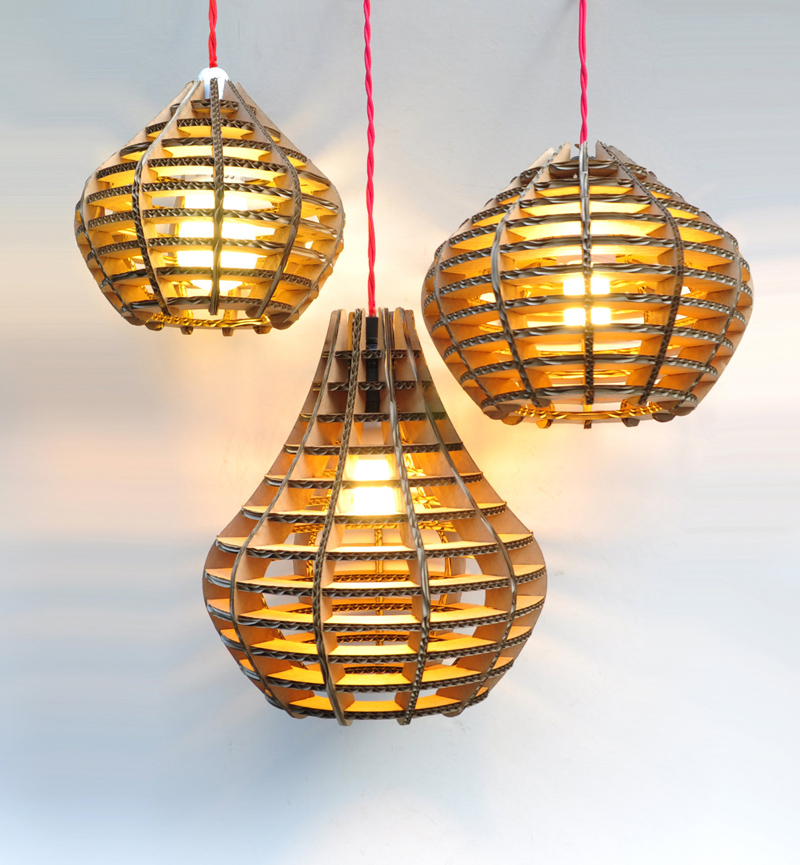

Inspiration:

Image from: http://www.designrulz.com/design/2015/02/diy-20-creative-cardboard-lamp-ideas

With this lamp in mind, I started sketching up ideas for my lamp and decided I would make the design shown on the below sketch. An LED light bulb would be placed in the center of the blocks while the blocks may be mounted on a turn table.

Aesthetic Vision:

The Aesthetic I was looking to achieve is the scattering of light effect by the corrugated edges of the cardboard. The rotation of the cardboard blocks could also produce the effect of a disco lamp only without the colors. Although I couldn’t completely achieve my set aesthetic goal, I improvised during my build process to end up with a rather not so different aesthetic.

Functional Goals:

My goals for this project would be to create a lamp to use during the night without disturbing my sleeping roommates and also look cool while doing so.

Design Process:

Perhaps the major change from my ideal design process for this project would be the selection of raw materials. As an engineer, I’ve been trained to choose a material for my design rather than design for a chosen material. However this being an upcycle project, finding a raw material to make something out of it would become one of the initial steps of the process. Also, the limitations of the materials I had, lead to a few extra steps during the process.

Final Product:

The bat symbol was an afterthought upon finishing the assembly of the layers as I felt this would give a better feel instead of having a simple square opening at the top.

Future Plans:

The bulb could be replaced with a larger and better one to form a uniform pattern of light from the lamp. Adding a couple more blocks of cardboard layers can also help render a clearer and better bat symbol without much diffraction of the light which is the case now.

Here’s a video of my presentation at class.
