Minimalism Bike Fender Progress Report

The upcycle project I am working on is a rear bike fender made from an aluminum can. The first constraint I am working within is the size of an aluminum can. I would like to use just one can so I needed the dimensions to find the maximum amount of material I could use. The height of a can is about 4.8″, so I will use this length as the width of the fender. Since I am only after the flat material coming out of the can, and the top and bottom are tapered, I will make the width of the fender about 4″. The circumference of a can is about 8″ so I will make this the overall length of the fender. The plan is to cut the top and bottom of the can off and then I can unroll the material until it is flat.

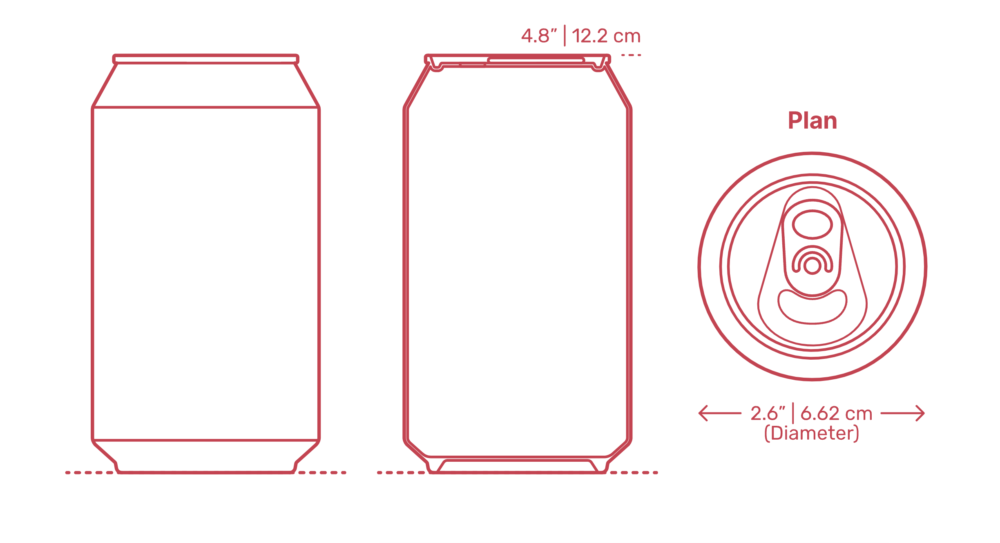

Dimensions of a standard soda can. [1]

Once I had my flat material, I could start developing a flat pattern to cut out of it. I did a few sketches on paper until I was happy with the flat pattern design. Below is the final sketch. The pattern consists of a few cut lines and three fold lines. The fold lines will give the flat aluminum structure. I am aware that the first design of the pattern will not translate into my desired result, so I will have to make a few prototypes to iterate through the design.

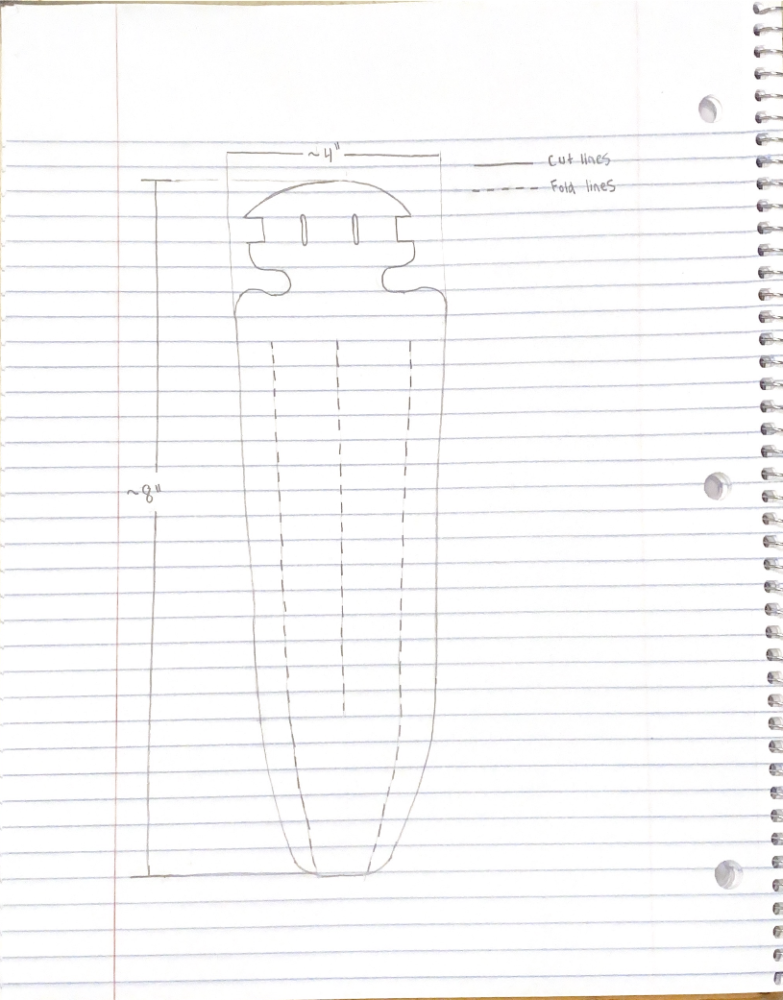

Final flat pattern for the bike fender.



To follow my selected aesthetic of minimalism, I will sand the flat aluminum until it is bare aluminum with a semi polished semi satin finish.



References

[1] https://www.dimensions.com/element/beverage-can-12-oz
