0130161655

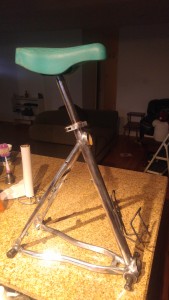

The stool, made from a bike rear triangle.

bike frame stools

[1]

While looking at bike stuff on the internet, I came across these stools. I have some scrap frames and junker bikes, so I filed this away as a project. Realizing that there is so much more that can be done with these, I decided to switch away from Pine Can, a project I was never really satisfied with. In that respect, the non-linear aspects of our design loop are satisfied. However, it is ultimately a pretty linear project. I saw what I wanted, and made it.

RSG_19715GRN

[2]

If I was really going to make a piece of furniture for the house, it would have to look like it belonged. I figured the niche would either be a bar stool, or a camping chair. As such, I decided to style it after a 1950’s chrome/vinyl stool. This is a timeless aesthetic that I figured would be more than compliant with my busy schedule. If they could make these in the 50s, I can make this now. Right now! I was wrong.

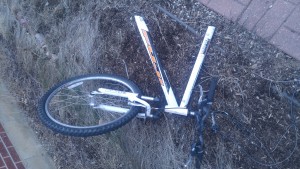

0130161603I started off selecting a frame. This old Fuji had practically no useful components on it, and would be more trouble to salvage than it would be worth. If I donated it, it would likely go to scrap. Furthermore, it was aluminum which should resist corrosion. I took a handsaw to it.

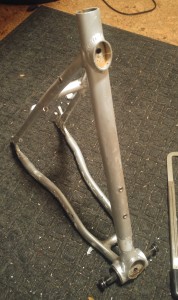

0128161812After the rear triangle was separated from the bike, I took some methylene chloride based paint stripper to it. A dozen chemical burns later, I got the following. This triangle was heavily bead blasted, and so it would need to be refinished.

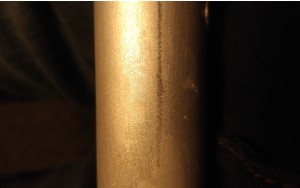

0128161944

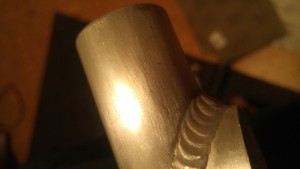

0128161951Going from 180 to 220 to 320 grit sandpaper, I was able to achieve to following over the surface of the frame. Strangely enough, going with finer grit actually seemed to make  the finish duller. From here I went to a polishing wheel with soft, paraffin based, chrome compound.



0129161837

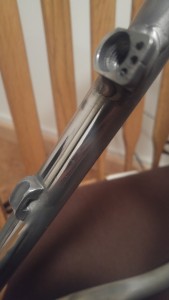

Post polishing wheel sample.









0129162137

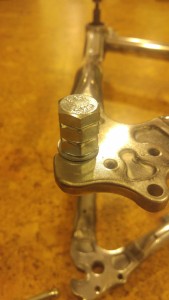

10mm bolts put through the dropouts to widen the stool’s stance.











0129162137a

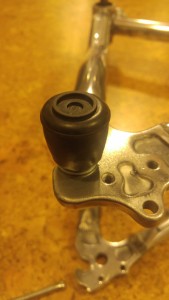

Cane ends placed over the bolts to prevent floor scratching.

0129162130

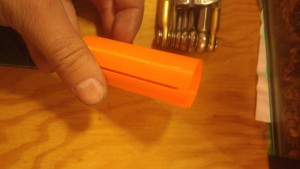

The seat I found unfortunately had the seatpost permanently affixed. What’s more is the seatpost was too small to fit in the frame. I 3D printed this shim to fill the annulus.

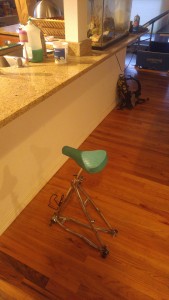

With polishing done and the seatpost fitted, I pulled the cup holder off of the scrapped frame, resulting in this:



0130161655a

Overall, I like it. Was it worth the better part of 2 days and two lifted fingernails? We’ll see! It is definitely a keeper. Beats standing while I eat.



Things I like:

  • Looks cool.
  • Bikes.
  • Adjustable height.
  • Beer holder.
  • Green.
  • Doesn’t scratch the floor.
  • Decently comfortable.
  • Good range of heights.

Things to improve:

  • More polishing after I’ve recovered.
  • Remove the cable lugs for a cleaner look. This would bring it closer to the 50s aesthetic.
  • Find paint to match the seat post clamp and bottle cage to the seat.
  • Remove the bottom bracket.
  • Cut off the remainders of the top and down tubes. Find some way to face them.
  • Put a flair on the shim so that it doesn’t fall into the frame when the seat is adjusted.
  • Seatpost sometimes rotates under heavy load. You could say my stool is loose.
