Wine Knife (almost there)

Tested some more handle patterns this weekend, finally got a good method for producing a random patterning in the handle material which will allow me to avoid cutting too deep into the locations where the pinstock is keeping everything held together. Hopefully I can finish assembly by the end of the week, I had started but forgot to include a few key pieces on the onset, I had to tear it apart and make a some adjustments losing a few hours on Tuesday. The issue was I had forgot the handles are mounted to the interior by the pinstock, I attached all the interior and had no way of attaching the handles. Once I punched out the pins, not easy considering I nearly destroyed the interior structure with the punch and hammer, I cut some longer pins and attached the handles and interior structure. Surprisingly the structure seems quite strong considering how thin some of the areas ended up being.

WIN_20160412_115901

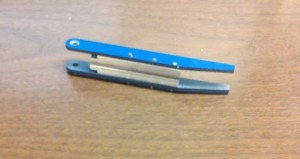

Upper handle assembly, missing fillers

WIN_20160330_135749

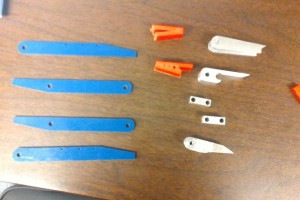

All the pieces, ready for assembly

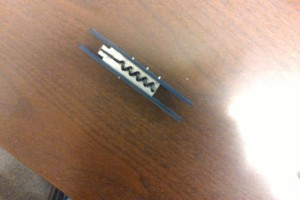

Upper handle assembly

One the pins are in place they will be flared with a peening hammer, locking them together, then come the pivots and final assembly. Once all together I plan to sand and buff the exterior parts to a smooth finish.



, ,
