Final Report Part 1 – What and How

For my final project I made the 50s style coat shown above!

Process:

Here is my original sketch that I made when I was still unclear what I wanted to make for this final project.

Original Sketch

After looking at the scene in The Marvelous Mrs. Maisel when she wears the coat, I sketched the coat out with a little more detail.

Back sketch

Front sketch with sleeve







Prototype Number 1: 1/4 size paper coat

I decided to make a 1/4 size version of the coat out of paper to see if it would look right using the dimensions I had figured out. I didn’t end up making the sleeves because they would have stuck straight out if they were made of paper. This helped me figure out some problems with my sketches. Then I made some sketches with even more detail. These dimensions correspond to a 1/4 size coat.

1/4 coat back panels with dimensions

1/4 coat front panel with dimensions



































I realized that the collar was going to be hard to figure out so I made some sketches to wrap my mind around it.

Final 1/4 size coat out of paper

Prototype Number 2: 1/2 size coat

Next I made a 1/2 size coat out of fabric. I got some bad quality fabric for free and I decided to make a small version of the coat to see how it will turn out. I made the sewing pattern out of paper and then cut out the fabric leaving room around the edges for the seams.





























Then I sewed the coat together.

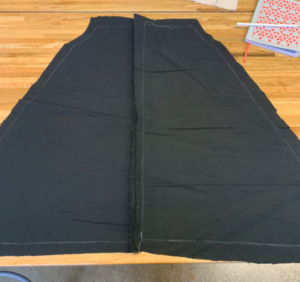

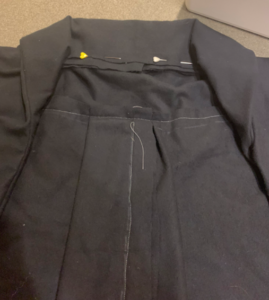

Back panels sewed together

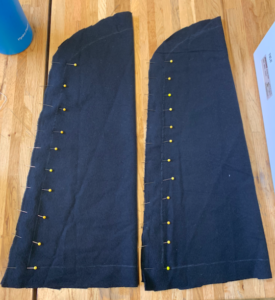

Sleeves pinned together before sewing

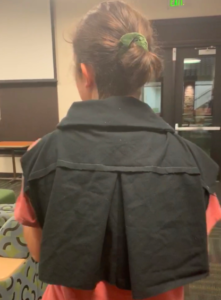

Prototype 2.5: Full size vest

The 1/2 size coat ended up really weird around the collar so I decided to use more of the free fabric to make a full size vest that would help me figure out the correct dimensions.



Final Product

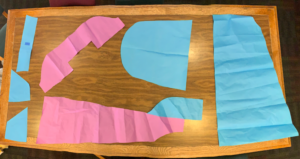

I started out by making the full size sewing pattern shown below.












Then I cut out all the pieces by pinning the paper to the fabric and leaving room for the seams. I was much more accurate with the seam allowances on the final product than I was during the first prototypes.

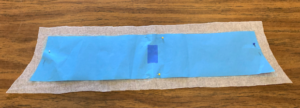

Upper back piece

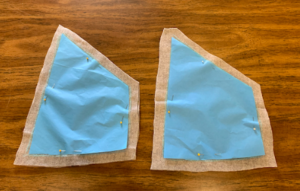

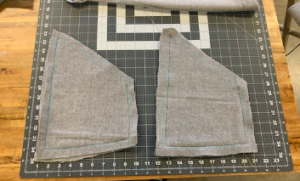

Pockets cut out of fabric

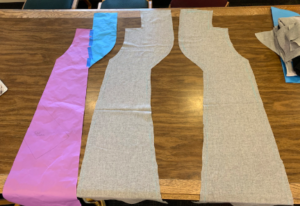

Front panels for full size coat













Then I started sewing! The whole process took around 15 hours. It didn’t go very fast because I didn’t want to mess up a seam and have to do even more sewing. Also, the fabric was really thick and I sometimes had to have up to 4 layers of fabric under the needle at one time. This made it really hard to sew and the sewing machine sometimes glitched.

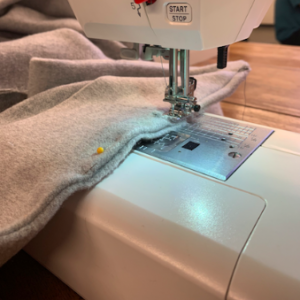

Sewing the most important seam around the opening of the coat.

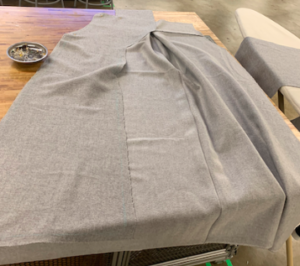

Back sewed together, laying out the front piece before pinning.

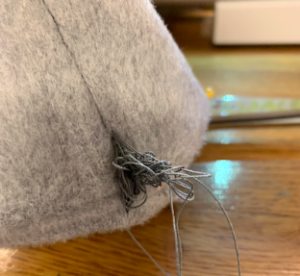

Sewing machine problem on the bottom seam

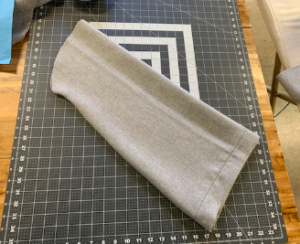

Sleeve sewed together!

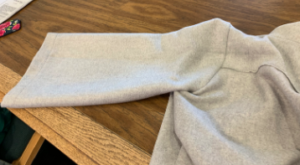

Sleeve sewed to the coat

Pockets sewed together













I also had to iron down the seams so that they would look right. A lot of the seams needed to be sewn in one direction and then flipped inside out so that the seam is hidden. In order for the seams to stay where they needed to be, I had to iron them down. I also added a cord into the bottom seam of the coat to weight it down. This made it fall correctly.

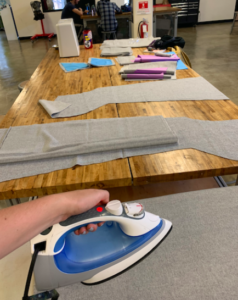

Ironing the seams


















Last minute changes!

The day before my presentation I realized that the back pleat of the coat was flowing outwards too much. I realized that the coat I was trying to replicate had seams down the back of the pleat so I sewed those.

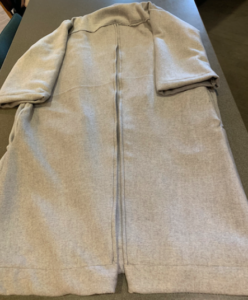

Seams down the back pleat

Seams down the back pleat


















I also changed the sleeves the day before the presentation. I didn’t like how big the sleeves were so I made them shorter and less wide at the bottoms.

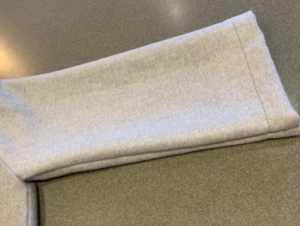

New sleeve


Hardest Part

The hardest part of this project was figuring out the collar. It took a lot of different iterations and a lot of sketches before I understood how to make the collar without any visible seams. The collar still ended up lopsided as you can see in the picture below. I am not sure why the collar is lopsided so I don’t know how to fix it.

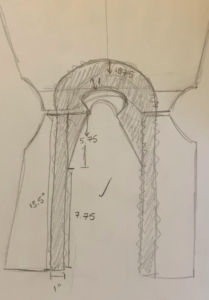

One of many sketches of the collar

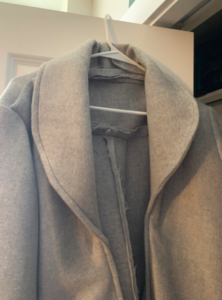

Final lopsided collar



















Here is another picture of the final product! I am really proud of it even if there are some wonky parts.

Final coat!



Here is a link to my in class presentation: https://youtu.be/kHN1btdQWDg
