Design Review 2020 Part Two: Timeline and Logistics

Water Clock: Design Review Part Two


The aesthetic I am going for


Update as of 3/15/2020:

Due to the recent closure of the University and other circumstances surrounding the COVID-19 pandemic, I will be descoping the project. Without the campus resources, I would not be able to laser cut the material, build the assembly jig, or weld the acrylic. Instead of manufacturing the device, I will be creating realistic CAD renderings and, as a stretch goal, a simulation of the device. With this rescoping of the project, I will go back to the brainstorming phase and reimagine the device without the constraints of my previous timeline and budget. Some of the following report was written with the intention of building the device; I will keep it in this post as a display of my work. This blog post as been updated with a ‘Timeline’ and ‘Manufacturing and Assembly Processes’ sections.

For this project, I will be developing a clock/timer that is controlled by droplets of water. The idea here is to incorporate water and electronics and invoke that sense of uneasiness, yet also provide the calmness of falling water. The device will consist of a white or clear acrylic body that contains a shallow plastic bowl. From the bowl, the water will be pumped up about six inches and fed into a spout. The water will then fall onto a force sensitive resistor (FSR). An Arduino Uno will be used to detect the change in voltage across the FSR and tick a counter to keep track of time. The time will then be displayed on an LCD screen. All electrical components will be mounted to the acrylic body of the device and covered with another sheet of acrylic. I will be targeting Apple’s minimalist design aesthetic using white colors with sleek transitions and curvy lines. Everything in their products are customized for the specific applications and Apple even designs innovative manufacturing processes to facilitate the fabrication of the design. Their products look clean, and although it will be difficult to mimic the curved lines, the white color and simplistic design will hopefully be enough to tie it all together. I was initially thinking of using a cylindrical container to hold the water. The pump would fill the cylinder up and as the height of the water changed, the pressure in the cylinder will change which could be detected using a pressure sensor. As the pressure changes, the clock on the Arduino would then tick. There are a few problems with this. First, the change in static pressure would be really small, and therefore, it would be difficult to find a sensor with the appropriate resolution and accuracy; it could be possible to use a proximity sensor to detect the change in height, but I decided to steer away from this option. Secondly, the user would have to “reset” the clock by dumping out the water in the cylinder; there are many ways around this such as using a valve, however, I am trying to keep the design as straightforward as possible.


At the beginning of this course, I knew I wanted to make a clock of some sort. I was initially thinking of using a purely mechanical design to add a twist to an analog clock. I then started thinking about incorporating water. I brainstormed a few ideas and a few aesthetics. I landed on the concept of using falling water to tick the clock. This led to more ideas such as using a water wheel to turn an analog clock, but I decided I wanted to use water and electronics. So, I went with a digital clock, a sensor, and a pump. All of this would be controlled by an Arduino.

This device can detect the height of the water in the bottle and to count the user’s water intake

 I found a few hobbyist projects online that were using a similar concept. One of which is a water bottle that can keep track of the user’s water intake. It uses an ultrasonic proximity sensor to detect the change in height of the water and displays the volume on the segment display. I did not find any projects that used water to tick a digital clock, though. As far as I am aware, it is an original idea. With that said, water clocks have been used all the way back in the 16th century B.C. With these devices, a controlled flow rate of water into or out of a reservoir was used to keep time. There are markings on the container to indicate how much time has elapsed since the container was full or empty. They are known to be invented in Athens, Greece, and used to time out harvest seasons and things of the like. The technology exploits Torricelli’s law of water escaping a container through an orifice.[3] As the height of the water decreases, the speed, and therefore the volumetric flow rate of the stream, changes with time. There is a lot of knowledge of fluid mechanics and engineering implemented in these devices.

An ancient water clock


The clock is going to be desk size and will have an aesthetic that matches the image in Figure 1. It will be minimalistic and white in color. Hopefully the design will create a calming sound similar to a gentle waterfall. The device will keep time to within 5 minutes. It will have an interesting look and catch your attention from across the room.


The device is going to be about six inches in length, four inches in depth, and about six inches in height. The acrylic body will only stand about three inches tall. The spout will be 3D printed and bonded to the acrylic tab that sticks out of the enclosure. This allows the water to gain enough potential energy to trigger the FSR but also makes the water visible over the wall of the enclosure. Additionally, the FSR will be mounted to an acrylic tab that is cantilevered from the edge of the wall. Below is a rough sketch of the general concept.

Rough sketch of the design concept


The acrylic will be cut on the laser cutter. Each of the acrylic pieces can be solvent welded together to create a strong seal. If the seal is water-tight enough, there will not be a need for a bowl or reservoir, and the water can be stored in the left compartment along with the pump. In the right compartment, the electronics will be stored. The wiring for the sensor and power cable for the pump will be routed up above the water level and into the electronics compartment; from there, they will be routed out through a hole in the acrylic on the backside of the device. The LCD screen will be mounted in the front wall of the enclosure. A diagram of my design process is below. Due to the budget and time constraints, my process will be pretty linear. The idea here was to keep the design as simple as possible, while budgeting my time wisely for manufacturing. I have decided on what concept, what aesthetic, and I will be manufacturing in the coming weeks.

My design process

Timeline and Adjusted Timeline

Below are two tables with deadlines for each action item. The first table is a more realistic timeline given the recent closures of the University and other circumstances surrounding COVID-19. The second table is the ideal timeline I would have followed. At this point in time, my project will need to be descoped due to these challenges. Because the University has closed its facilities, I will not be able to laser cut the acrylic and build the assembly jig; I was also hoping to weld the acrylic on campus since the resources are available there. Instead of building the device, I plan to make realistic CAD renderings. As a stretch goal, I would also like to make a simulation of the device. With this new scope, I can take some time to re-envision the design and improve on its manufacturability and aesthetic. As I will not be building the device, I may incorporate other features that may not be feasible to fabricate within my previous timeline and budget.

The timeline I will use moving forward in this project given the dominating challenges with the COVID-19 pandemic


In my ideal timeline, I have already acquired the Arduino, sensor, and pump. I would then purchase the acrylic and have it laser cut by April 4th. In parallel, I can be working on the circuitry and code for the electronics, which I would plan to complete by April 7th. This will give me time to test the sensor and pump to determine if they can function as designed by April 10th. The welding of the acrylic enclosure would also be completed by April 10th.  I would then have my device assembled and tested by April 15th. This gives me about a week to pursue stretch goals and work on documentation in time for the design expo on April 22nd.

Ideal timeline formed prior to outbreak


The acrylic parts will be manufactured out of 1/4″ thick sheets. The following pump will be used. It is designed for aquariums and can supply up to 50 GPH. It has an adjustment knob to change the flow rate. The pump has suction cups on the back that will make it easy to mount in water.

The pump that will be used


 The following force sensitive resistor will be used. It can detect anywhere from 0 to 10 kg. To ensure the impact force of the drop on the sensor is sufficient, the volumetric flow rate of the pump can be changed to alter the mass of the droplet/stream. As the gravitational potential energy gets converted into kinetic energy, the velocity of the droplet will increase, therefore increasing the change in momentum of the droplet and in turn increasing the impulse or impact force on the sensor.

The force sensitive resistor


 An Arduino Uno and breadboard circuit will be used to monitor the voltage across the sensor. It will then tick the clock and will display it on an LCD screen. Theoretically, this device could be used as a timer or a clock. Below are some preliminary CAD renderings of the device.

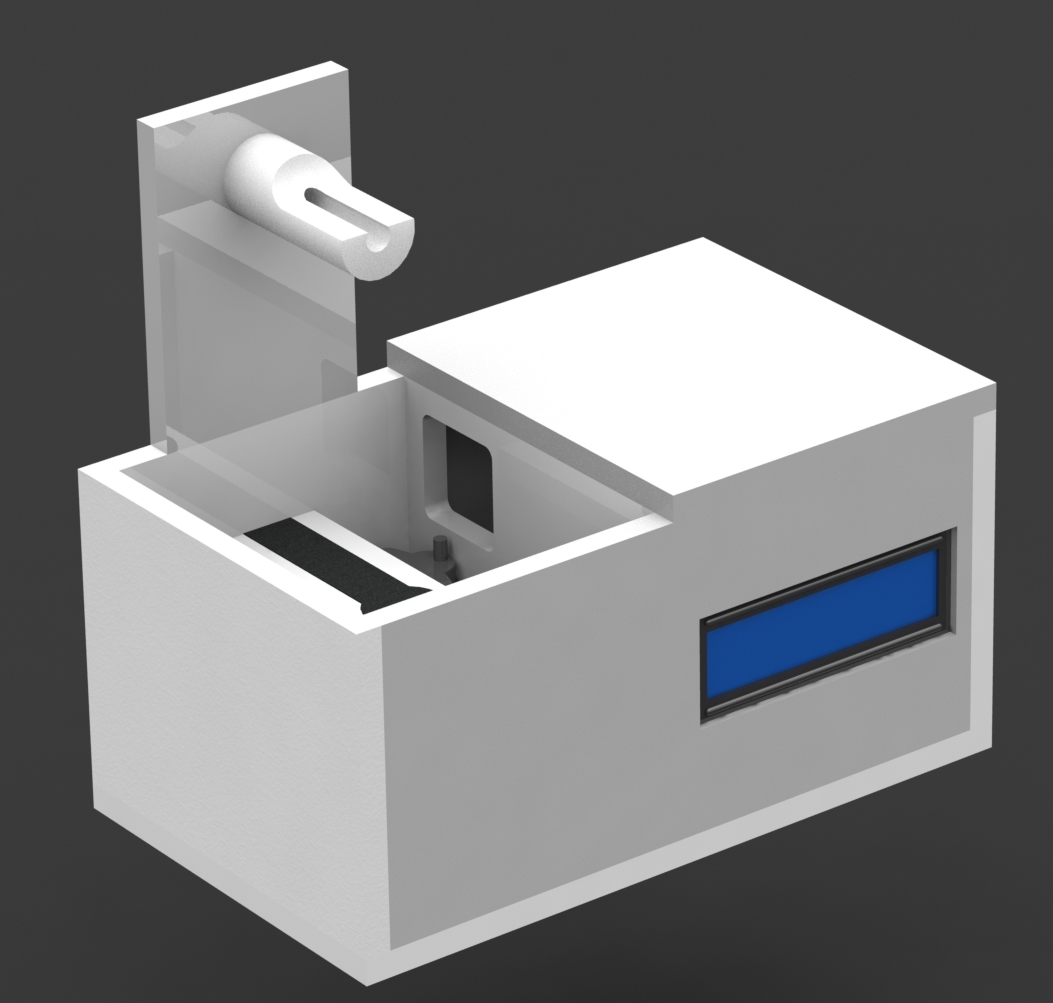

Example rendering of the device


Rendering showing the inside of the device. The left side will contain the water, pump, spout, and FSR. The right side will hold the Arduino and LCD.

Manufacturing and Assembly Process

The following processes would be used if University’s resources were available: After the acrylic is laser cut, it will be welded together. To do so, I will create an assembly jig to hold the acrylic pieces together while it is welded together. The solvent will chemically bond the two acrylic sheets together, forming a unified piece of material; this type of bond will provide the sealing of the water compartment. The solvent is applied using a syringe which can accurately spread the solvent in a contained location (i.e. the corner edges). The assembly jig will be made out of 2″x4″s and plywood. There are not strict three-dimensional geometric tolerances with this enclosure, and therefore, lumber will suffice. A piece of plywood will be used to create a platform and two 2″x4″s will be used to make a corner. From here, the acrylic base plate will be laid down on the plywood, and the walls against the 2″x4″. One at a time, the walls will be added, running the syringe along the interface of the two sheets. This process will be completed for each of the walls until all pieces have been added. Because the University’s resources are not available and may not be available for many weeks, I will instead be creating renderings and a simulation (stretch goal).

Challenges and Stretch Goals

It is going to be difficult to achieve the curvy lines with the acrylic sheets. It may be possible to machine the acrylic and break the edges, however, even if the rounded edges cannot be achieved, the design should still fit the targeted aesthetic. Another challenge is going to be setting the flow rate of the pump to output enough mass to actuate the sensor. As a stretch goal, I will add a strip of LEDs to add to the aesthetic of the device. The RGB LEDs could then be independently controlled so the device can be used with or without the lights. If implemented appropriately, the light could be refracted through the water, so perhaps they could be mounted at the bottom of the reservoir.

Conclusion and Design Metrics

The project will be successful if it can measure the water dropping on the sensor and tick the clock. The device shall contain the water without the water leaking into the electronics compartment, potentially ruining the electronics. The device shall be small enough to fit on a desk. If the device fits in with the theme of the devices in Figure 1, then it will have met its aesthetic requirements. I have not completed any manufacturing and am in the process of procuring materials. If you have any suggestions or any white acrylic laying around, please let me know.

Note: I wrote this report before COVID-19 hit Colorado. I decided to keep everything I have written and amend the report with my new plans. Refer to the Timeline and Adjusted Timeline section of this report for more details on my plans moving forward. In short, I will not be manufacturing anything and will instead create some renderings, and as a stretch goal, a simulation of the device.

Design Review Part 1 Presentation


[1] Pinterest. “What an Aesthetic. | Home Office Setup, Desk Inspiration, Apple Products.” Accessed February 24, 2020.

[2] “Arduino-Powered Water Bottle – Arduino Project Hub.” Accessed February 17, 2020.
[3] “Water Clock.” In Wikipedia, March 4, 2020.
[4] Pinterest. “A Brief History of Telling Time | Water Clock, Telling Time, Old Clocks.” Accessed March 6, 2020.
Previous Post
Design Review Part 2: Dopamine Interactive Apparel
Next Post
Design Review 2020 Part 2: Desk Lamp

5 Comments. Leave new

  • […] As the COVID-19 pandemic unfolded, I decided to re-scope my project. Instead of manufacturing anything, I decided to use the past few weeks to really focus on the design and create renderings and an animation of the device. I have also pivoted my idea to designing a water vortex desk ornament. Previously, I was going to build a water clock: water would drip over a sensor, and from this sensor reading, a digital clock would be ticked and displayed on the device’s LCD screen (view my previous post here). […]

  • […] As the COVID-19 pandemic unfolded, I decided to re-scope my project. Instead of manufacturing anything, I decided to use the past few weeks to really focus on the design and create renderings and an animation of the device. I have also pivoted my idea to designing a water vortex desk ornament. Previously, I was going to build a water clock: water would drip over a sensor, and from this sensor reading, a digital clock would be ticked and displayed on the device’s LCD screen (view my previous post here). […]

  • Hey Daniel,
    First off… WOW! This is an amazing idea and project as a whole. I am sorry to hear that it won’t be physically manufactured, but the contingency plan you have in place due to COVID-19 limitations is also good. This entire design review post is extremely detailed and allows any audience to fully understand your timeline, inspiration, etc… Very well done! I honestly have no comments or advice to add more value to this review of your project. Keep up the amazing work!

  • Hi Danny! I commented last week on your idea and aesthetic. For this week, how do you think your timeline will be affected by everything going on? If you do not have access to a laser cutter would you still stick with acrylic as your main material? How do you plan to generally adjust your project?

    • Daniel Straub
      March 30, 2020 11:13 am

      Refer to the first paragraph of the Timeline section of my report. I address all of this. To answer your question, I will not be manufacturing anything. Instead, I will be making realistic CAD renderings and hopefully a simulation/animation of how the device would work.
