Design Review: Hologram Prototyped

Inspiration

a) iTunes & iPod 2000-2011 Ad Campaign

For my main project, I have decided to create a hologram based on one of the most successful advertising campaigns ever executed.  My project is inspired by the iTunes and iPod web, print, TV, and billboard advertisements widespread from early 2000 to 2011.  Chances are high that you will recognize these iconic figures represented by dancing silhouettes against vibrant backgrounds.  A sample of images as such is pictured below.

I also recommend taking a peek at this highly informative website outlining the specifics and scope of the iTunes advertising campaign:

http://www.pophistorydig.com/topics/ipod-silhouettes-2000-2011/

I purchased many an iTunes gift card during my preteen and teenage years, so as I look back, I now feel uncomfortably old and incredibly reminiscent.  It is fascinating to see how far Apple has come especially as Apple Music and other streaming services grow in success.  In the tech industry, you never quite know what lies around the corner.  So exciting!

b) Pop Art & Design

The 20th-century design movement that is most integral to the design of my final project is pop art, a genre lasting from 1958 to 1972 emerging first in Britain.  This movement is characterized by a rainbow of colors, expressive forms, repetition, vivid patterns, and often incorporates well-known personalities such as Marilyn Monroe and comic characters in addition to consumer products like Campbell’s soup and Coca-Cola.

One of the most widely known pop artists is Andy Warhol who created the works shown below.



Warhol was often inspired by mass produced advertisements and consumer goods.  Likewise, I have been inspired to create my main project based on the well-known iTunes and iPod advertisements featuring silhouettes against pinks, greens, purples, yellows, and other bright colors.

An example of the type of advertisement I have incorporated is shown below.

Additional examples of pop design are also below.



c) “Happy” by Pharrell Williams

Both the music and dance routines represented in my main project stem from inspiration gained in observing Pharrell Williams’ official “Happy” music video.  I immediately fell in love with the transition from dancer to dancer and upbeat audio.  In creating my design, I purchased this song from iTunes.  The music video is included below.

d) Apple’s Mantra

My design incorporates Apple’s “Think Different” mantra in expressing the individuality and uniqueness of each dancer represented.

d) DIY Hologram Creations



Constraints

  1. I will use only neon colors and those that are part of iTunes & iPod ad campaigns.
  2. I must design my hologram for an apple product and must purchase audio from iTunes.
  3. The size of my hologram is limited by the size of the iPad (screen size of 7.5in x 5.75in) chosen to use for my final design.  My prototype is designed to fit the screen of an iPhone.
  4. My maximum budget for this project is $150.  I must not spend beyond this amount.  Materials and tools that must be purchased include acrylic, hinges/adhesive, footage, audio track, and video editing software (Adobe Premiere).
  5. The footage I have selected from Pond5 will influence my project aesthetic in that I am unable to project images at varying angles.



Prototyping

a) Aesthetic

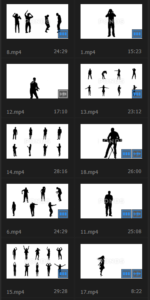

Pond5 Footage

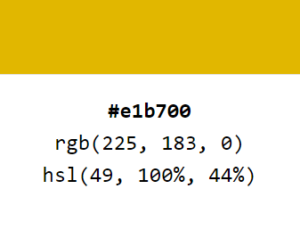

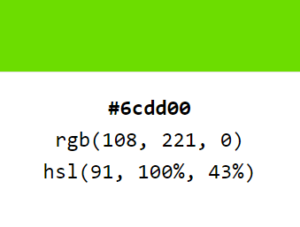

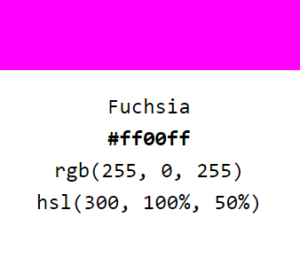

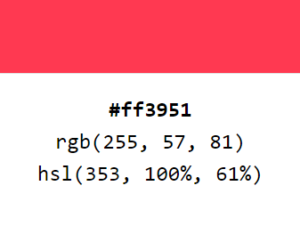

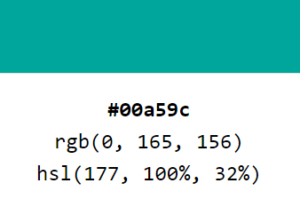

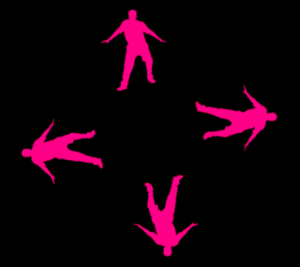

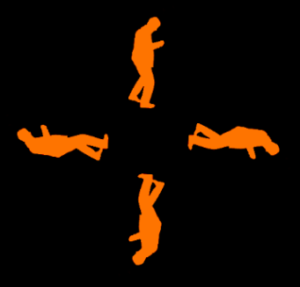

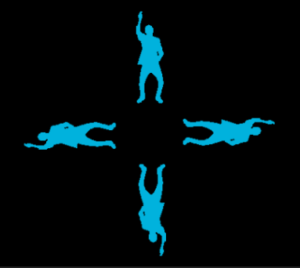

Color

b) Technical

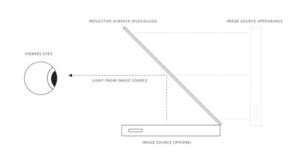

Hologram Projection



Materials

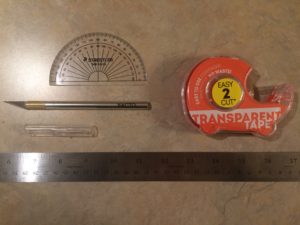

  • Protractor
  • Stainless Steel Ruler
  • Xacto Knife
  • Scotch Tape
  • Plastic (recycled product packaging)
  • Paper

Adobe Premiere

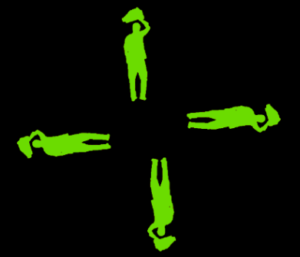

I utilized layers to create 4 separate panels represented by V1, V2, V3, and V4.

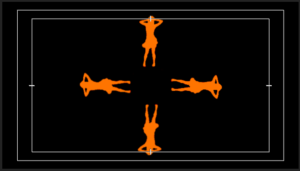

I utilized Safety and Action Guides for placement and to maintain safe margins across devices.

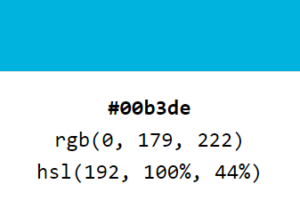

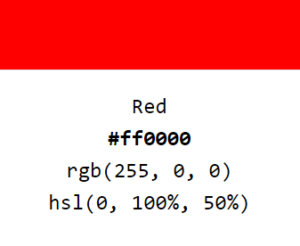

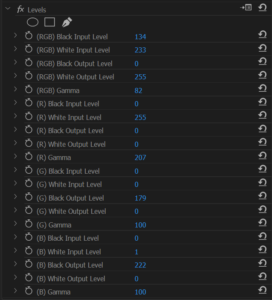

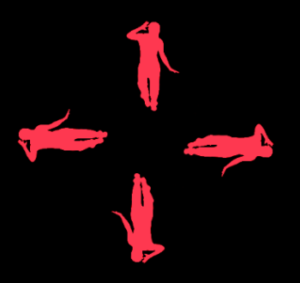

To create varying colors against a black background, I adjusted the following levels.  Black Output Level values combine as typical rgb values to create the color of the dancer.



Result

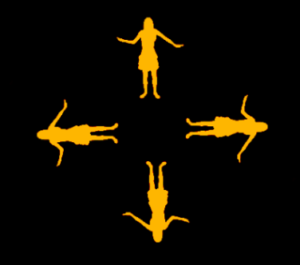

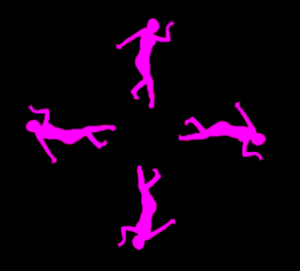

The iTunes & iPod Hologram footage is included below.  This is a prototype and will include slight adjustments upon completion of my final project.  The video serves a double purpose in that it is both fun to view as a hologram and as is.

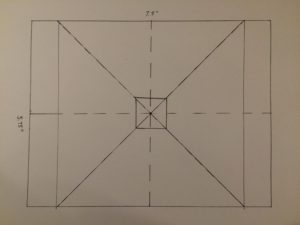

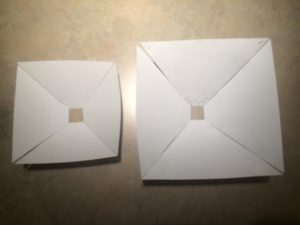

Below are two paper prototypes made to experiment with sizing and hinges.  The final versions will be sized between these. I would also like for the final version to include hinges or another mechanism to ensure it is easy to fold for optimal transportation.

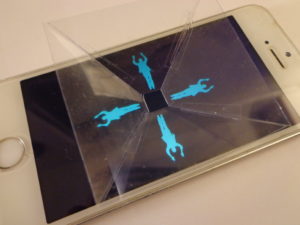

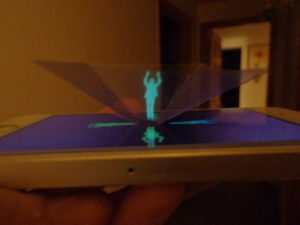

The prototype of my 4-panel hologram projector is shown below.



Next Steps

  1. Incorporate mechanism to prevent the 4-pannel projector from sliding on the screen.  It is important that the projector remains centered.
  2. Add hinges to each panel to allow for accordion-style folding.  This will allow for more compact transportation of the device.
  3. Learn to laser cut sheets of acrylic!
  4. Tweek video placement to ensure equidistance from center point.
  5. Consider adding a cover to the 4-pannel projector to enhance the image by decreasing interference of light from above.



Citation

  • http://www.instructables.com/id/Reflective-Prism/
  • https://www.pinterest.com/theatre5dot1/soundbass/
  • https://www.pinterest.com/pin/277041814548900719/
  • https://www.pinterest.com/pin/222365300321492754/http://bit.ly/2mbON2o
  • http://news.softpedia.com/news/Did-You-Know-The-Story-behind-Apple-039-s-039-Think-Different-039-Motto-88130.shtml
  • http://www.creativebloq.com/art/pop-art-8133921
  • http://www.architectureartdesigns.com/18-chic-interior-designs-inspired-by-pop-art/
  • https://www.moma.org/learn/moma_learning/andy-warhol-campbells-soup-cans-1962
  • http://www.designveryeasy.com/tags/Wayne-Thiebaud-Pop-Art-Movement-58262
  • http://drdgraphicdesigns.blogspot.com/2012/06/pop-art-movement-and-graphic-design.html
  • https://learnodo-newtonic.com/andy-warhol-famous-paintingshttps://en.wikipedia.org/wiki/Barack_Obama_%22Hope%22_poster
