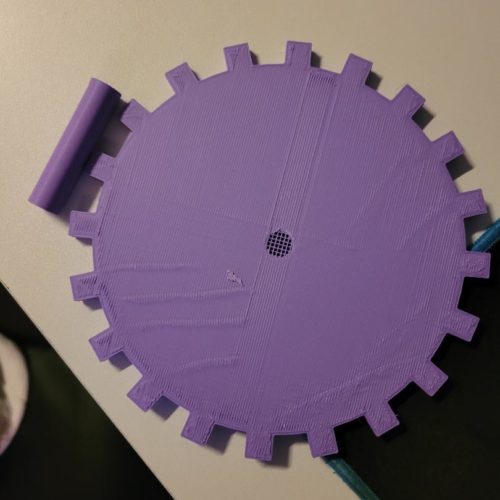

I had a lot of trouble trying to get all of my prints out. The printers at the itll and idea forge are notorious for failing all of the time. The first print that I made for my gear plate came out with lots of imperfections on the gear teeth.…

Above you can see my product as it stands. This is only a prototype at the moment to see how much I like it. I am considering doing a redesign since the product feels a little simplistic. I am thinking about styling the product more like a car differential in the future and will have…

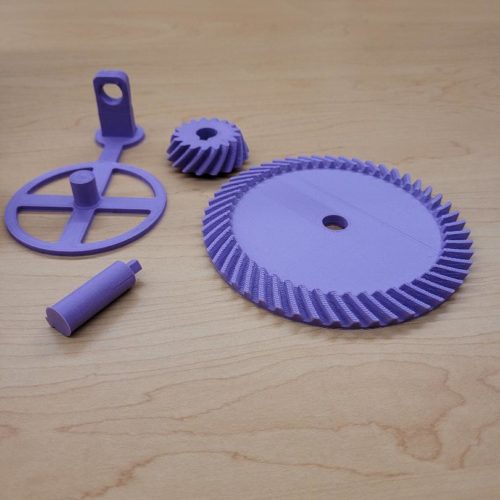

So far I have successfully printed some of the most vital components of my project. The bevel gears fit together very nicely but the shaft pinion and gear base don’t fit very well. The holes on the gears are too small for the shaft and base so I plan on taking a dremel tool to…

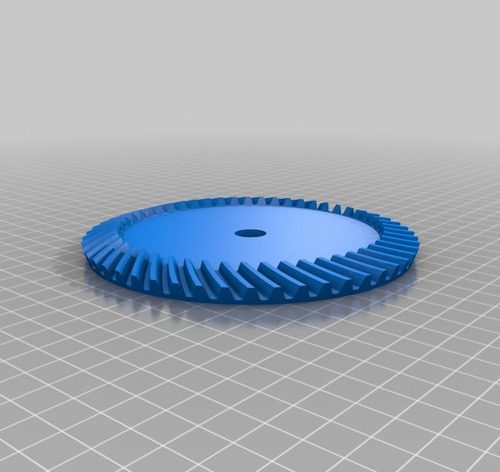

My final project is going to be a mechanical watch holder. The goal is to have two bevel gears attached to a base and powered by a hand crank. Above are two bevel gears that I have borrowed from Thingiverse since I am not skilled enough in CAD to make my own[1]. I also plan…

Specifications I’ve decided to make my design follow a minimalist aesthetic. I would like to focus on making the design as clean cut and functional as possible. Since this will be a present to my father I would also like for him to be able to customize it however he would like.  The material will…

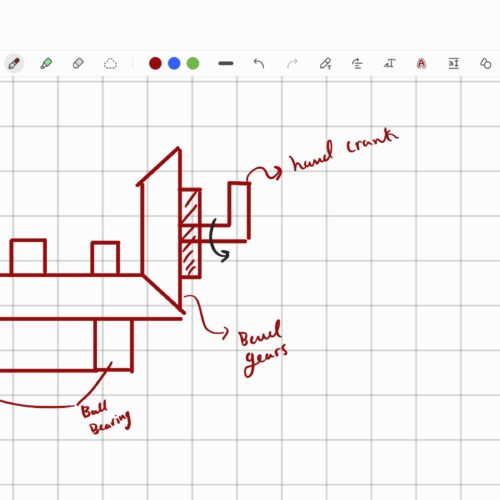

My current idea is sketched above. Right now I have a bevel gear set up and plan on 3D printing other gears and pipes to fit around my watch holder to accomplish a steampunk aesthetic. I am not very familiar with 3D printing and fear that there may be some issues printing gears as complex…

Naturally, as a mechanical engineering student I have a love for mechanical devices. I enjoy playing with gears and building blocks, which is why my aesthetic is going to be my best attempt at steampunk. Steampunk is an aesthetic that revolves around 19th century steam powered machinery. The time period often takes place during the…

One designer that has always stood out to me is Frank Lloyd Wright. Frank Lloyd was an American architect, designer, and educator in the early 1900s. He is known for designing over 1000 structures and his focus on organic architecture later in his career. Organic architecture is the combination of man-made structures with natural features…

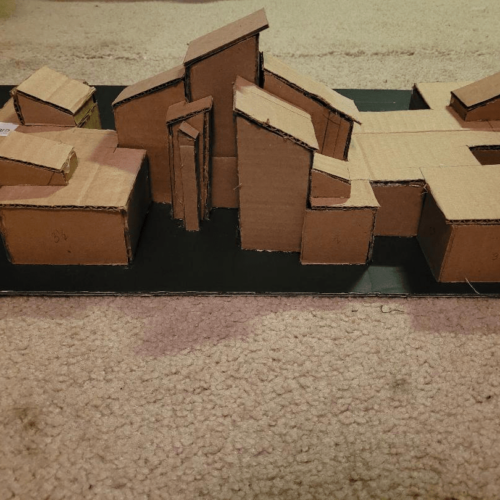

I’m pretty happy with how my project turned out. In my last post I was finishing up with the outline sketch of the base. Since then I have changed some original plans that I had for the project. Originally I planned on making a model of the entire EC but found that cutting out all…

My upcycling project is going pretty well right now. So far I have collected a bunch of recycled cardboard from the engineering center of various sizes. The card board is not very sturdy so I bought a cheap baseboard from a local Walgreens that I can use to place my model on top of. The…

I have chosen to focus on brutalist aesthetic for my project. Through my years here at CU I have always wondered why the engineering center was built the way it is. The rest of campus uses vibrant red bricks and ceilings while the engineering center looks like an old, concrete, decaying building. Recently I have…

Brutalism is an architectural style that arose in the 1950s in the United Kingdom. The style arose during building reconstruction in the post-war era. Brutalism is a style where the raw materials used to construct the building are exposed. Buildings usually have a dark worn out aesthetic to them. A great example of this is…
